MAX5888

The MAX5888 is 3.3V / 16-Bit / 500Msps High Dynamic Performance DAC designed by Maxim.

Product Overview

Maxim

Datasheet Details

Part number	MAX5888
Manufacturer	Maxim
File Size	746.91 KB
Description	3.3V / 16-Bit / 500Msps High Dynamic Performance DAC
Datasheet	MAX5888_MaximIntegratedProducts.pdf

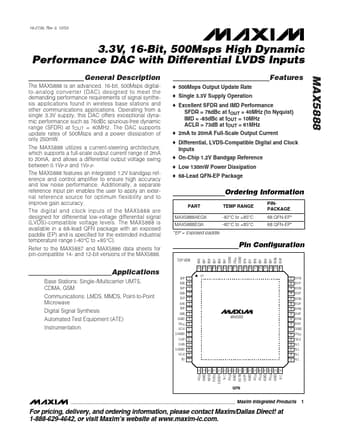

Additional preview pages of the MAX5888 datasheet.

Product details

Description

The MAX5888 is an advanced, 16-bit, 500Msps digitalto-analog converter (DAC) designed to meet the demanding performance requirements of signal synthesis applications found in wireless base stations and other communications applications.

Features

an integrated 1.2V bandgap reference and control amplifier to ensure high accuracy and low noise performance. Additionally, a separate reference input pin enables the user to apply an external reference source for optimum flexibility and to improve gain accuracy. The digital and clock inputs of the MAX5888 are designed for differential low-voltage differential signal (LVDS)-compatible voltage levels. The MAX5888 is available in a 68-lead QFN package with an exposed paddle (EP) and is specified f.
