MAX5814, MAX5813 - Ultra-Small Quad-Channel 8-/10-/12-Bit Buffered Output DACs

Maxim Integrated Products

The MAX5814 by Maxim Integrated Products is a Ultra-Small Quad-Channel 8-/10-/12-Bit Buffered Output DACs. Below is the official datasheet preview.

📥 Download Datasheet

MAX5814 Ultra-Small Quad-Channel 8-/10-/12-Bit Buffered Output DACs by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX5814** Ultra-Small Quad-Channel 8-/10-/12-Bit Buffered Output DACs datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX5814, MAX5813
Manufacturer	Maxim Integrated Products
File Size	3.95 MB
Description	Ultra-Small Quad-Channel 8-/10-/12-Bit Buffered Output DACs
Datasheet	MAX5813-MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX5814, MAX5813. Please refer to the document for exact specifications by model.

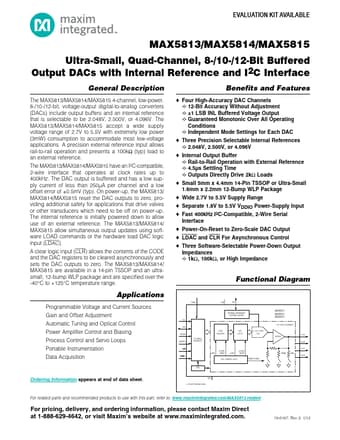

Additional preview pages of the MAX5814 datasheet.

MAX5814 Product details

Description

The MAX5813/MAX5814/MAX5815 4-channel, low-power, 8-/10-/12-bit, voltage-output digital-to-analog converters (DACs) include output buffers and an internal reference that is selectable to be 2.048V, 2.500V, or 4.096V.

Features

S Four High-Accuracy DAC Channels.
12-Bit Accuracy Without Adjustment.
±1 LSB INL Buffered Voltage Output.
Guaranteed Monotonic Over All Operating Conditions.
Independent Mode Settings for Each DAC S Three Precision Selectable Internal References.
2.048V, 2.500V, or 4.096V S Internal Output Buffer.
Rail-to-Rail Operation with External Reference.
4.5µs Settling Time.
Outputs Directly Drive 2kI Loads S Small 5mm x 4.4mm 14-Pin TSSOP or Ultra-S.
