MAX5802, MAX5800 - 8-/10-/12-Bit DACs

Maxim

The MAX5802 by Maxim is a 8-/10-/12-Bit DACs. Below is the official datasheet preview.

📥 Download Datasheet

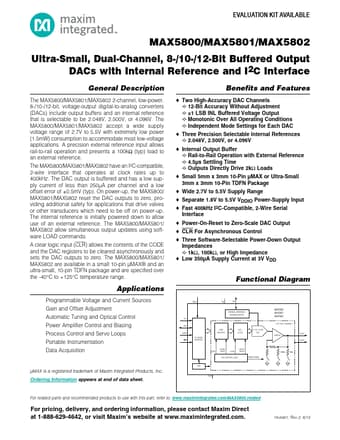

MAX5802 8-/10-/12-Bit DACs by Maxim - Datasheet Preview — Official preview page of the **MAX5802** 8-/10-/12-Bit DACs datasheet (Maxim).

Datasheet Details

Part number	MAX5802, MAX5800
Manufacturer	Maxim
File Size	2.17 MB
Description	8-/10-/12-Bit DACs
Datasheet	MAX5800_Maxim.pdf
Note	This datasheet PDF includes multiple part numbers: MAX5802, MAX5800. Please refer to the document for exact specifications by model.
Additional preview pages of the MAX5802 datasheet.

MAX5802 Product details

Description

The MAX5800/MAX5801/MAX5802 2-channel, low-power, 8-/10-/12-bit, voltage-output digital-to-analog converters (DACs) include output buffers and an internal reference that is selectable to be 2.048V, 2.500V, or 4.096V.

Features

S Two High-Accuracy DAC Channels.
12-Bit Accuracy Without Adjustment.
±1 LSB INL Buffered Voltage Output.
Monotonic Over All Operating Conditions.
Independent Mode Settings for Each DAC S Three Precision Selectable Internal References.
2.048V, 2.500V, or 4.096V S Internal Output Buffer.
Rail-to-Rail Operation with External Reference.
4.5µs Settling Time.
Outputs Directly Drive 2kI Loads S Small 5mm x 3mm 10-Pin µMAX or Ultra-Small 3mm x 3mm 10-P.
