MAX5885

The MAX5885 is 3.3V / 16-Bit / 200Msps High Dynamic Performance DAC designed by Maxim.

Product Overview

Maxim

Datasheet Details

Part number	MAX5885
Manufacturer	Maxim
File Size	862.23 KB
Description	3.3V / 16-Bit / 200Msps High Dynamic Performance DAC
Datasheet	MAX5885_MaximIntegratedProducts.pdf

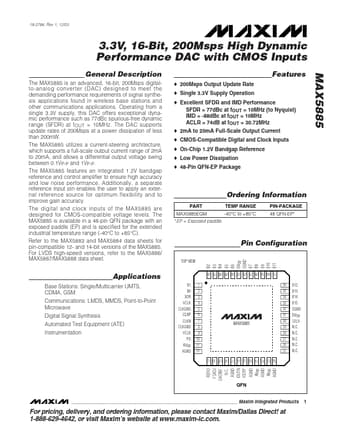

Additional preview pages of the MAX5885 datasheet.

Product details

Description

The MAX5885 is an advanced, 16-bit, 200Msps digitalto-analog converter (DAC) designed to meet the demanding performance requirements of signal synthesis applications found in wireless base stations and other communications applications.

Features

an integrated 1.2V bandgap reference and control amplifier to ensure high accuracy and low noise performance. Additionally, a separate reference input pin enables the user to apply an external reference source for optimum flexibility and to improve gain accuracy. The digital and clock inputs of the MAX5885 are designed for CMOS-compatible voltage levels. The MAX5885 is available in a 48-pin QFN package with an exposed paddle (EP) and is specified for the extended industrial temperature range (-4.
