MAX5821 - Dual / 10-Bit / Low-Power / 2-Wire / Serial Voltage-Output DAC

Maxim

The MAX5821 by Maxim is a Dual / 10-Bit / Low-Power / 2-Wire / Serial Voltage-Output DAC. Below is the official datasheet preview.

📥 Download Datasheet

MAX5821 Dual / 10-Bit / Low-Power / 2-Wire / Serial Voltage-Output DAC by Maxim - Datasheet Preview — Official preview page of the **MAX5821** Dual / 10-Bit / Low-Power / 2-Wire / Serial Voltage-Output DAC datasheet (Maxim).

Datasheet Details

Part number	MAX5821
Manufacturer	Maxim
File Size	368.86 KB
Description	Dual / 10-Bit / Low-Power / 2-Wire / Serial Voltage-Output DAC
Datasheet	MAX5821_MaximIntegratedProducts.pdf

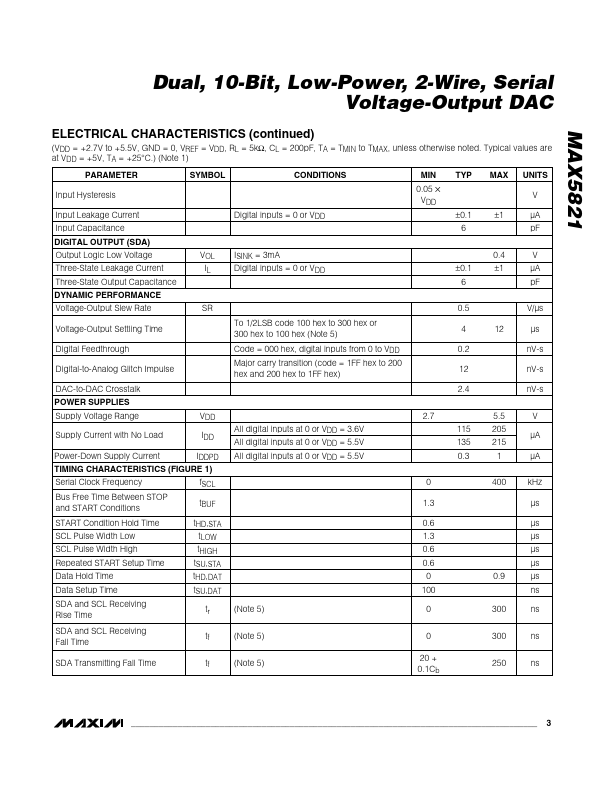

Additional preview pages of the MAX5821 datasheet.

MAX5821 Product details

Description

The MAX5821 is a dual, 10-bit voltage-output, digital-toanalog converter (DAC) with an I 2 C ™ -compatible, 2-wire interface that operates at clock rates up to 400kHz.

Features

three software-selectable powerdown output impedances: 100k Ω , 1k Ω , and high impedance. Other features include internal precision Rail-to-Rail® output buffers and a power-on reset (POR) circuit that powers up the DAC in the 100kΩ powerdown mode. The MAX5821 features a double-buffered I2C-compatible serial interface that allows multiple devices to share a single bus. All logic inputs are CMOS-logic compatible and buffered with Schmitt triggers, allowing direct interfacing to optocoupled and tr.
