MAX5035 - 1A / 76V / High-Efficiency MAXPower Step-Down DC-DC Converter

Maxim

The MAX5035 by Maxim is a 1A / 76V / High-Efficiency MAXPower Step-Down DC-DC Converter. Below is the official datasheet preview.

📥 Download Datasheet

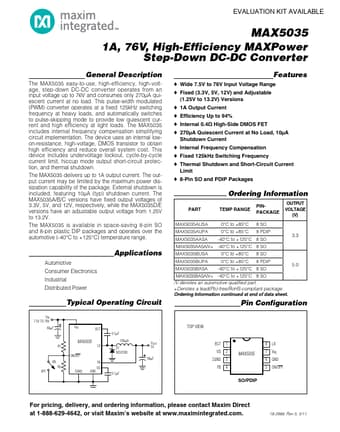

MAX5035 1A / 76V / High-Efficiency MAXPower Step-Down DC-DC Converter by Maxim - Datasheet Preview — Official preview page of the **MAX5035** 1A / 76V / High-Efficiency MAXPower Step-Down DC-DC Converter datasheet (Maxim).

Datasheet Details

Part number	MAX5035
Manufacturer	Maxim
File Size	646.96 KB
Description	1A / 76V / High-Efficiency MAXPower Step-Down DC-DC Converter
Datasheet	MAX5035_MaximIntegratedProducts.pdf
Additional preview pages of the MAX5035 datasheet.

MAX5035 Product details

Description

The MAX5035 easy-to-use, high-efficiency, high-voltage, step-down DC-DC converter operates from an input voltage up to 76V and consumes only 270µA quiescent current at no load.

Features

o Wide 7.5V to 76V Input Voltage Range o Fixed (3.3V, 5V, 12V) and Adjustable (1.25V to 13.2V) Versions o 1A Output Current o Efficiency Up to 94% o Internal 0.4Ω High-Side DMOS FET o 270µA Quiescent Current at No Load, 10µA Shutdown Current o Internal Frequency Compensation o Fixed 125kHz Switching Frequency o Thermal Shutdown and Short-Circuit Current Limit o 8-Pin SO and PDIP Packages OOrrddeerriinngg IInnffoorrmmaattiioonn PART PIN- OUTPUT TEMP RANGE.
