MAX503 - 5V / Low-Power / Parallel-Input / Voltage-Output / 10-Bit DAC

Maxim

The MAX503 by Maxim is a 5V / Low-Power / Parallel-Input / Voltage-Output / 10-Bit DAC. Below is the official datasheet preview.

Datasheet Details

Part number	MAX503
Manufacturer	Maxim
File Size	118.40 KB
Description	5V / Low-Power / Parallel-Input / Voltage-Output / 10-Bit DAC
Datasheet	MAX503_MaximIntegratedProducts.pdf

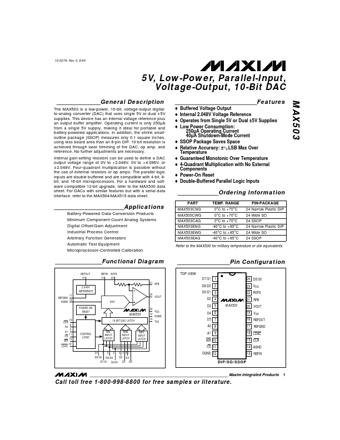

Additional preview pages of the MAX503 datasheet.

The MAX503 is a low-power, 10-bit, voltage-output digitalto-analog converter (DAC) that uses single 5V or dual ±5V supplies.

but with a serial data interface, refer to the MAX504/MAX515 data sheet. ____________________________Features o o o o o o o o o o Buffered Voltage Output Internal 2.048V Voltage Reference Operates from Single 5V or Dual ±5V Supplies Low Power Consumption: 250µA Operating Current 40µA Shutdown-Mode Current SSOP Package Saves Space Relative Accuracy: ±1/2 LSB Max Over Temperature Guaranteed Monotonic Over Temperature 4-Quadrant Multiplication with No External Components Power-On Reset Double-Buff.
