MAX394 Low-Voltage / Quad / SPDT / CMOS Analog Switch

MAX394 Description

19-0391; Rev 0; 5/95 Low-Voltage, Quad, SPDT, CMOS Analog Switch _______________General .
The MAX394 is a precision, low-voltage, quad, singlepole/double-throw (SPDT) analog switch.

MAX394 Features

* o Low On-Resistance, < 17Ω Typical (35Ω max) o Guaranteed Matched On-Resistance Between Channels, < 2Ω o Guaranteed Flat On-Resistance over Analog Signal Range, ∆4Ω Max o Guaranteed Charge Injection < 10pC o Guaranteed Off-Channel Leakage < 2.5nA at +85°C o ESD Guaranteed > 2000V per Method 3015.7 o

MAX394 Applications

* Test Equipment Communications Systems PBX, PABX Heads-Up Displays Portable Instruments Audio Signal Routing Set-Top Boxes
* Contact factory for dice specifications.
* Contact factory for availability. __________Typical Operating Circuit INPUTS OUTPUTS V1 - V2 __________________Pin Co

📥 Download Datasheet

Preview of MAX394 PDF

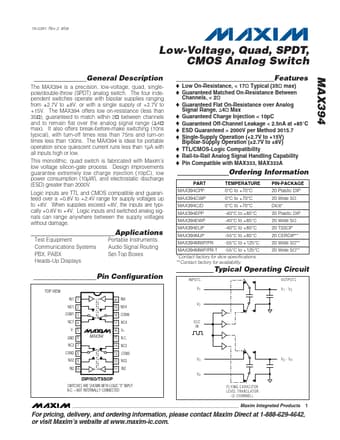

datasheet Preview Page 2 datasheet Preview Page 3
