MAX393, MAX Precision / Quad / SPST Analog Switches

MAX393 Description

19-0236; Rev 1; 6/99 Precision, Quad, SPST Analog Switches General .
The MAX391/MAX392/MAX393 are precision, quad, single-pole/single-throw (SPST) analog switches designed to operate at +3V, +5V, or ±5V.

MAX393 Features

* o Low On-Resistance, 20Ω Typical o Guaranteed On-Resistance Match Between Channels,

MAX393 Applications

* Battery-Operated Systems Sample-and-Hold Circuits Heads-Up Displays Test Equipment ±5V DACs and ADCs Guidance and Control Systems Communications Systems PBX, PABX Audio and Video Switching Military Radios Ordering Information continued at end of data sheet.
* Contact factory for dice specificat

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX393, MAX. Please refer to the document for exact specifications by model.

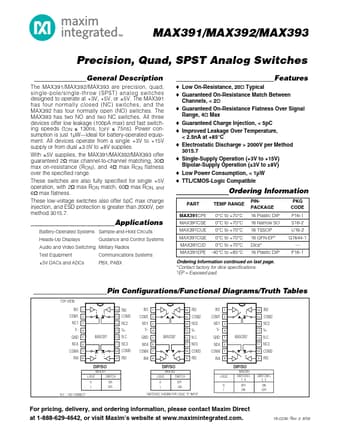

datasheet Preview Page 2 datasheet Preview Page 3
