MAX3902 150Mbps Automotive Fiber Optic Receivers

MAX3902 Description

19-3278; Rev 1; 7/04 150Mbps Automotive Fiber Optic Receivers General .
The MAX3901/MAX3902 are optimized for low-cost polymer-clad silica (PCS) and plastic optical fiber (POF) automotive receivers.

MAX3902 Features

* a 1.2µA to 1mA input range, a +3.3V or +5V supply voltage, operation from 8Mbps to 50Mbps, and a TTL output compatible with common automotive optical network interfaces. The MAX3902 features a 1.2µA to 1mA input range, +3.3V supply voltage, operation from 40Mbps to 150Mbps, and a differential output

MAX3902 Applications

* Automotive Fiber Optic Receivers IEEE 1394b (S100β) PART MAX3901E/D MAX3902E/D Ordering Information TEMP RANGE -40°C to +140°C -40°C to +140°C PIN-PACKAGE Dice
* Dice
* Dice are designed to operate over a -40°C to +140°C junction temperature (Tj) range, but are tested and guaranteed at

📥 Download Datasheet

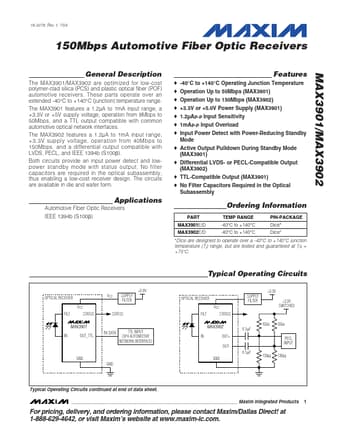

Preview of MAX3902 PDF
datasheet Preview Page 2 datasheet Preview Page 3
