MAX1454 - Precision Sensor Signal Conditioner

Name: MAX1454
SKU: MAX1454-914942

Maxim

The MAX1454 by Maxim is a Precision Sensor Signal Conditioner. Below is the official datasheet preview.

Datasheet Details

Part number	MAX1454
Manufacturer	Maxim
File Size	621.45 KB
Description	Precision Sensor Signal Conditioner
Datasheet	MAX1454-Maxim.pdf

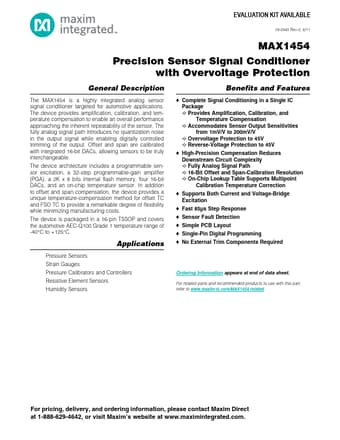

Additional preview pages of the MAX1454 datasheet.

The MAX1454 is a highly integrated analog sensor signal conditioner targeted for automotive applications.

S Complete Signal Conditioning in a Single IC Package.
Provides Amplification, Calibration, and Temperature Compensation.
Accommodates Sensor Output Sensitivities from 1mV/V to 200mV/V.
Overvoltage Protection to 45V.
Reverse-Voltage Protection to 45V S High-Precision Compensation Reduces Downstream Circuit Complexity.
Fully Analog Signal Path.
16-Bit Offset and Span-Calibration Resolution.
On-Chip Lookup Table Supports Multipoint Calibration Tem.
