MAX1450 - 1%-Accurate Signal Conditioner

Description

The MAX1450 sensor signal conditioner is optimized for piezoresistive sensor calibration and temperature compensation.

It includes an adjustable current source for sensor excitation and a 3-bit programmable-gain amplifier (PGA).

Features

  • 1% Sensor Signal Conditioning.
  • Corrects Sensor Errors Using Coefficients Stored in External Trimmable Resistors, Potentiometers, or DACs.
  • Compensates Offset, Offset TC, FSO, FSO TC, and FSO Linearity.
  • Rail-to-Rail Analog Output.
  • Programmable Current Source for Sensor Excitation.
  • Fast Signal-Path Settling Time (< 1ms).
  • Accepts Sensor Outputs from 10mV/V to 30mV/V.
  • Fully Analog Signal Path Ordering Information PART.

📥 Download Datasheet

📁 Similar Datasheet

  • MAX14500 - Hi-Speed USB-to-SD Card Readers (Maxim Integrated Products)
  • MAX14501 - Hi-Speed USB-to-SD Card Readers (Maxim Integrated Products)
  • MAX14502 - Hi-Speed USB-to-SD Card Readers (Maxim Integrated)
  • MAX14503 - Hi-Speed USB-to-SD Card Readers (Maxim Integrated Products)
  • MAX14504 - Dual SPDT Negative Rail Analog Switches (Maxim Integrated)
  • MAX14505 - Dual SPDT Negative Rail Analog Switches (Maxim Integrated)
  • MAX14505A - Dual SPDT Negative Rail Analog Switches (Maxim Integrated)
  • MAX14506 - Dual SPDT Negative Rail Analog Switches (Maxim Integrated)
  • MAX14514 - Dual Electroluminescent Lamp Driver (Maxim Integrated Products)
  • MAX14515 - He Smallest Liquid Lens Driver (Maxim Integrated Products)
Other Datasheets by Maxim
  • MAX145 - Serial 12-Bit ADCs
  • MAX1452 - Low-Cost Precision Sensor Signal Conditioner
  • MAX1454 - Precision Sensor Signal Conditioner
  • MAX1457 - 0.1%-Accurate Signal Conditioner for Piezoresistive Sensor Compensation
  • MAX1458 - 1%-Accurate / Digitally Trimmed Sensor Signal Conditioner
  • MAX14586 - (MAX14586 / MAX14590) High-Current Overvoltage Protectors
  • MAX1459 - 2-Wire / 4-20mA Smart Signal Conditioner
  • MAX14590 - (MAX14586 / MAX14590) High-Current Overvoltage Protectors

Full PDF Text Transcription

Click to expand full text

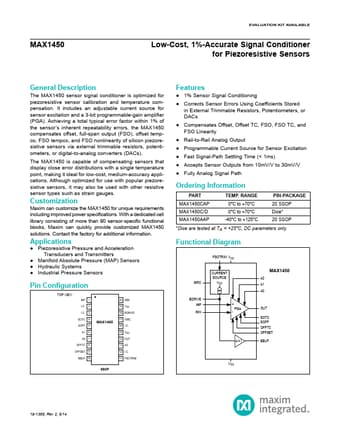

MAX1450 EVALUATION KIT AVAILABLE Low-Cost, 1%-Accurate Signal Conditioner for Piezoresistive Sensors General Description The MAX1450 sensor signal conditioner is optimized for piezoresistive sensor calibration and temperature compensation. It includes an adjustable current source for sensor excitation and a 3-bit programmable-gain amplifier (PGA). Achieving a total typical error factor within 1% of the sensor’s inherent repeatability errors, the MAX1450 compensates offset, full-span output (FSO), offset tempco, FSO tempco, and FSO nonlinearity of silicon piezoresistive sensors via external trimmable resistors, potentiometers, or digital-to-analog converters (DACs).
