MAX14502 - Hi-Speed USB-to-SD Card Readers

Description

The MAX14502 USB-to-SD™ card reader provides a means for portable devices that support full-speed USB communication (12Mbps) with one or two SD card slots, upgrading the USB SD card reader function to USB high-speed (480Mbps) operation.

Features

  • advanced power-saving modes to reduce power consumption in portable.

📥 Download Datasheet

📁 Similar Datasheet

  • MAX1450 - 1%-Accurate Signal Conditioner (Maxim)
  • MAX14500 - Hi-Speed USB-to-SD Card Readers (Maxim Integrated Products)
  • MAX14501 - Hi-Speed USB-to-SD Card Readers (Maxim Integrated Products)
  • MAX14503 - Hi-Speed USB-to-SD Card Readers (Maxim Integrated Products)
  • MAX145 - Serial 12-Bit ADCs (Maxim)
  • MAX14514 - Dual Electroluminescent Lamp Driver (Maxim Integrated Products)
  • MAX14515 - He Smallest Liquid Lens Driver (Maxim Integrated Products)
  • MAX1452 - Low-Cost Precision Sensor Signal Conditioner (Maxim)
  • MAX14521E - High-Voltage EL Lamp Driver (Maxim Integrated Products)
  • MAX14523A - Adjustable Current-Limit Switches (Maxim Integrated Products)
Other Datasheets by Maxim Integrated
  • MAX14504 - Dual SPDT Negative Rail Analog Switches
  • MAX14505 - Dual SPDT Negative Rail Analog Switches
  • MAX14505A - Dual SPDT Negative Rail Analog Switches
  • MAX14506 - Dual SPDT Negative Rail Analog Switches
  • MAX14575A - 250mA to 2.5A Adjustable Current-Limit Switches
  • MAX14575AL - 250mA to 2.5A Adjustable Current-Limit Switches
  • MAX14575B - 250mA to 2.5A Adjustable Current-Limit Switches
  • MAX14575C - 250mA to 2.5A Adjustable Current-Limit Switches

Full PDF Text Transcription

Click to expand full text

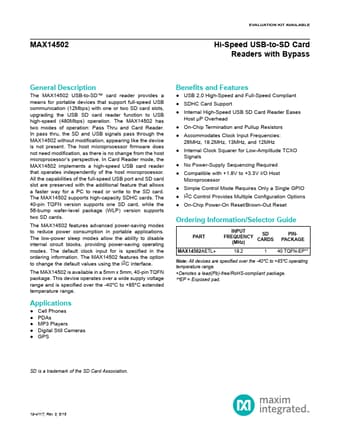

MAX14502 EVALUATION KIT AVAILABLE Hi-Speed USB-to-SD Card Readers with Bypass General Description The MAX14502 USB-to-SD™ card reader provides a means for portable devices that support full-speed USB communication (12Mbps) with one or two SD card slots, upgrading the USB SD card reader function to USB high-speed (480Mbps) operation. The MAX14502 has two modes of operation: Pass Thru and Card Reader. In pass thru, the SD and USB signals pass through the MAX14502 without modification, appearing like the device is not present. The host microprocessor firmware does not need modification, as there is no change from the host microprocessor’s perspective. In Card Reader mode, the MAX14502 implements a high-speed USB card reader that operates independently of the host microprocessor.
