MAX6966 - 10-Port Constant-Current LED Drivers and I/O Expanders

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX6966
Manufacturer	Maxim Integrated
File Size	856.22 KB
Description	10-Port Constant-Current LED Drivers and I/O Expanders
Datasheet	MAX6966 Datasheet

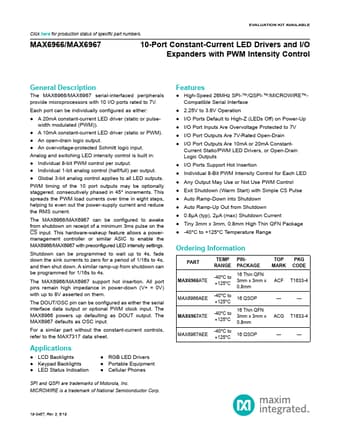

Additional preview pages of the MAX6966 datasheet.

Product details

Description

The MAX6966/MAX6967 serial-interfaced peripherals provide microprocessors with 10 I/O ports rated to 7V. A 20mA constant-current LED driver (static or pulsewidth modulated (PWM)). A 10mA constant-current LED driver (static or PWM). An open-drain logic output. An overvoltage-protected Schmitt logic input. Individual 8-bit PWM control pe
