MAX690S - 3.0V/3.3V Microprocessor Supervisory Circuits

Download the MAX690S datasheet PDF. This datasheet also covers the MAX690T variant, as both devices belong to the same 3.0v/3.3v microprocessor supervisory circuits family and are provided as variant models within a single manufacturer datasheet.

Description

These microprocessor (µP) supervisory circuits reduce the complexity and number of components required for power-supply monitoring and battery-control functions in µP systems.

They significantly improve system reliability and accuracy compared to separate ICs or discrete components.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX690T-MaximIntegrated.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MAX690 Microprocessor Supervisory Maxim
MAX6900 I2C-Compatible RTC Maxim
MAX6901 I2C-Compatible RTC Maxim
MAX6902 I2C-Compatible RTC Maxim
MAX690A Microprocessor Supervisory Circuits Maxim

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX690R 3.0V/3.3V Microprocessor Supervisory Circuits
MAX690T 3.0V/3.3V Microprocessor Supervisory Circuits
MAX6917 I2C-Compatible RTC
MAX6964ATG 17-Output LED Driver/GPO
MAX6966 10-Port Constant-Current LED Drivers and I/O Expanders

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

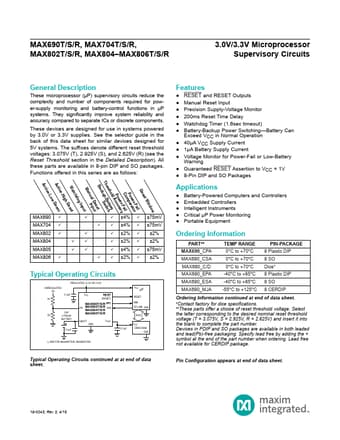

MAX690T/S/R, MAX704T/S/R, MAX802T/S/R, MAX804‒MAX806T/S/R 3.0V/3.3V Microprocessor Supervisory Circuits General Description These microprocessor (µP) supervisory circuits reduce the complexity and number of components required for power-supply monitoring and battery-control functions in µP systems. They significantly improve system reliability and accuracy compared to separate ICs or discrete components. These devices are designed for use in systems powered by 3.0V or 3.3V supplies. See the selector guide in the back of this data sheet for similar devices designed for 5V systems. The suffixes denote different reset threshold voltages: 3.075V (T), 2.925V (S), and 2.625V (R) (see the Reset Threshold section in the Detailed Description).
