MAX6963 - 4-Wire Serially Interfaced 8 x 8 Matrix Graphic LED Drivers

Download the MAX6963 datasheet PDF. This datasheet also covers the MAX6960 variant, as both devices belong to the same 4-wire serially interfaced 8 x 8 matrix graphic led drivers family and are provided as variant models within a single manufacturer datasheet.

General Description

The MAX6960

MAX6963 are compact cathode-row display drivers that interface microprocessors to 8 x 8 dotmatrix red, green, and yellow (R,G,Y) LED displays through a high-speed 4-wire serial interface.

MAX6963 drive two monocolor 8 x 8 matrix displays, or a single RGY 8 x 8

Key Features

  • o 2.7V to 3.6V Operation o High-Speed 20MHz Serial Interface o Trimmed 40mA or 20mA Peak Segment Current o Directly Drives Either Two Monocolor or One RGY Cathode-Row 8 x 8 Matrix Displays o Analog Digit-by-Digit Segment Current Calibration o Digital Digit-by-Digit Segment Current Calibration o 256-Step Panel Intensity Control (All Drivers) o Four Steps per Color Pixel-Level Intensity Control o Open/Short LED Detection o Burst White to Display Memory Planes o Global Command Access All Devices o.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX6960_MaximIntegratedProducts.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MAX696 Microprocessor Supervisory Circuits Maxim
MAX6964 17-Output LED Driver/GPO Maxim
MAX6964ATG 17-Output LED Driver/GPO Maxim Integrated
MAX6966 10-Port Constant-Current LED Drivers and I/O Expanders Maxim Integrated
MAX6967 10-Port Constant-Current LED Drivers and I/O Expanders Maxim Integrated

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX6960 4-Wire Serially Interfaced 8 x 8 Matrix Graphic LED Drivers
MAX6961 4-Wire Serially Interfaced 8 x 8 Matrix Graphic LED Drivers
MAX6962 4-Wire Serially Interfaced 8 x 8 Matrix Graphic LED Drivers
MAX6965 9-Output LED Driver
MAX6920 Serial-Interfaced VFD Tube Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

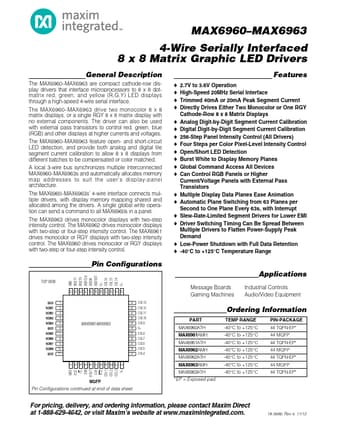

MAX6960–MAX6963 4-Wire Serially Interfaced 8 x 8 Matrix Graphic LED Drivers GND 12 OSC 13 CS 14 DIN 15 DOUT 16 CLK 17 RST 18 COL1 19 COL2 20 COL3 21 V+ 22 44 43 42 41 40 39 38 37 36 35 34 GND RISET1 RISET0 ADDCLK ADDIN ADDOUT V+ COL16 COL15 COL14 V+ General Description The MAX6960–MAX6963 are compact cathode-row display drivers that interface microprocessors to 8 x 8 dotmatrix red, green, and yellow (R,G,Y) LED displays through a high-speed 4-wire serial interface. The MAX6960–MAX6963 drive two monocolor 8 x 8 matrix displays, or a single RGY 8 x 8 matrix display with no external components. The driver can also be used with external pass transistors to control red, green, blue (RGB) and other displays at higher currents and voltages.
