MAX6129 - Ultra-Low-Power Series Voltage Reference

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX6129
Manufacturer	Maxim Integrated
File Size	933.11 KB
Description	Ultra-Low-Power Series Voltage Reference
Datasheet	MAX6129 Datasheet

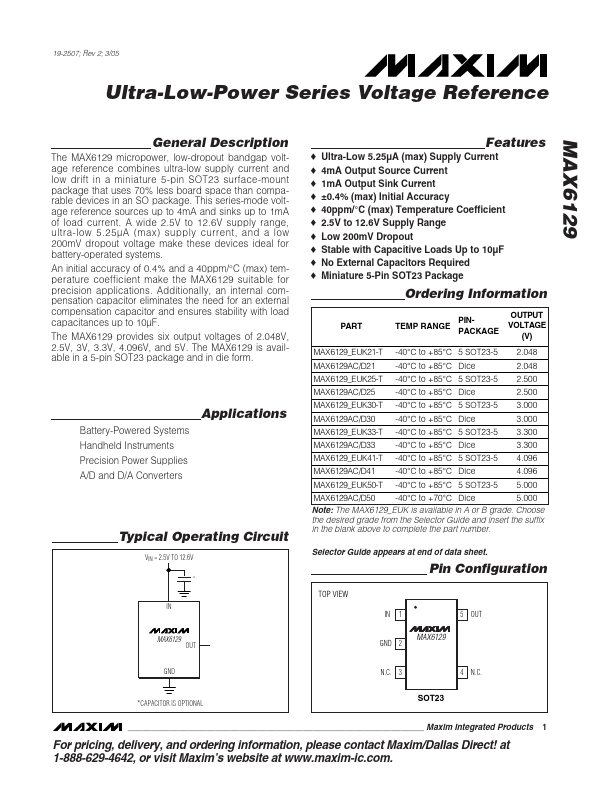

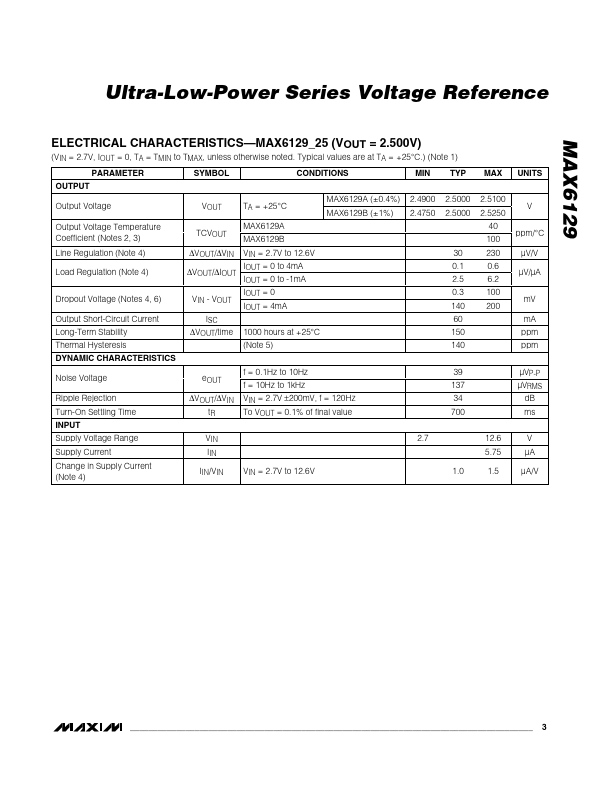

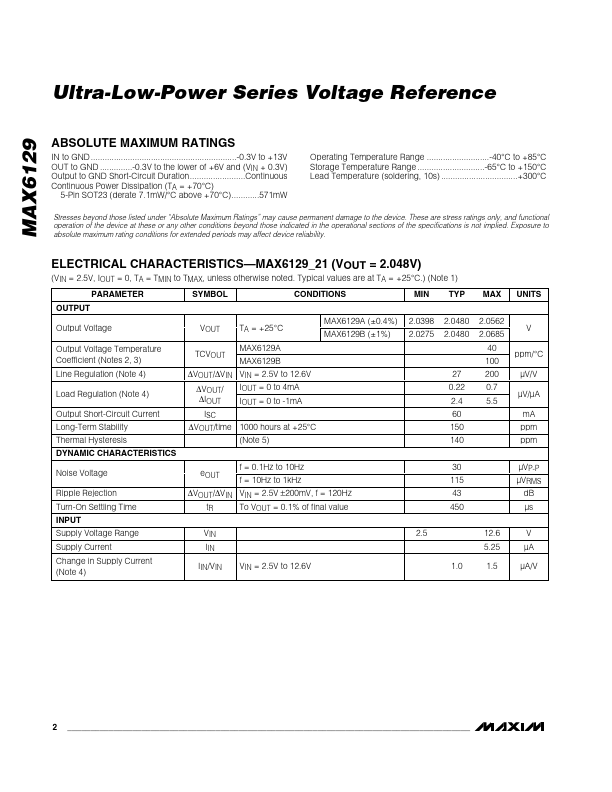

Additional preview pages of the MAX6129 datasheet.

Product details

Description

The MAX6129 micropower, low-dropout bandgap voltage reference combines ultra-low supply current and low drift in a miniature 5-pin SOT23 surface-mount package that uses 70% less board space than comparable devices in an SO package.

Features

Ultra-Low 5.25µA (max) Supply Current.
4mA Output Source Current.
1mA Output Sink Current.
±0.4% (max) Initial Accuracy.
40ppm/°C (max) Temperature Coefficient.
2.5V to 12.6V Supply Range.
Low 200mV Dropout.
Stable with Capacitive Loads Up to 10µF.
No External Capacitors Required.
Miniature 5-Pin SOT23 Package Ordering Information PA R T O U TPU T TEMP RANGE PIN.
