MAX6100 - SOT23 Voltage References

Maxim Integrated

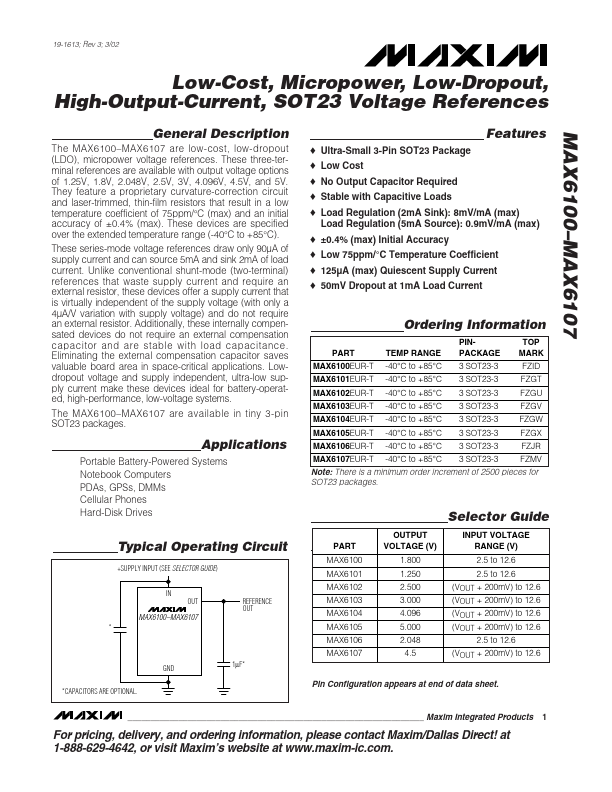

The MAX6100 by Maxim Integrated is a SOT23 Voltage References. Below is the official datasheet preview.

Datasheet Details

Part number	MAX6100
Manufacturer	Maxim Integrated
File Size	321.67 KB
Description	SOT23 Voltage References
Datasheet	MAX6100-MaximIntegrated.pdf

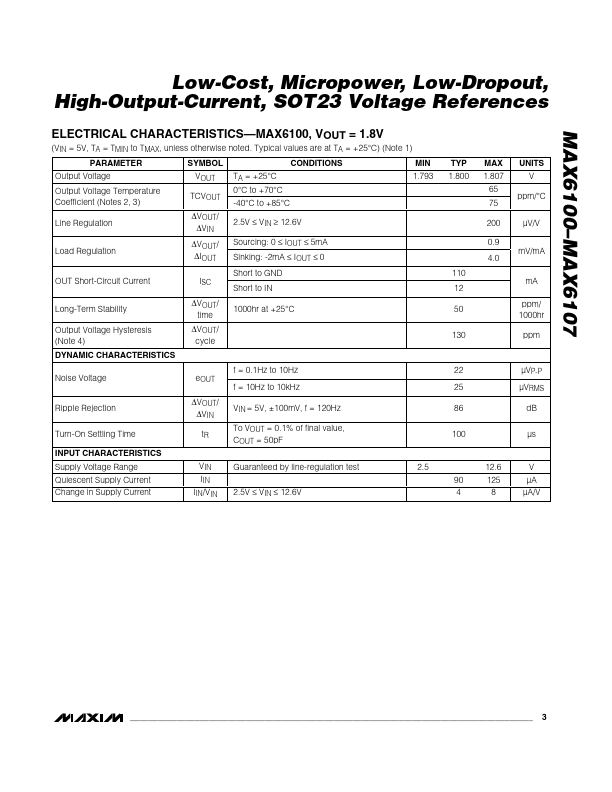

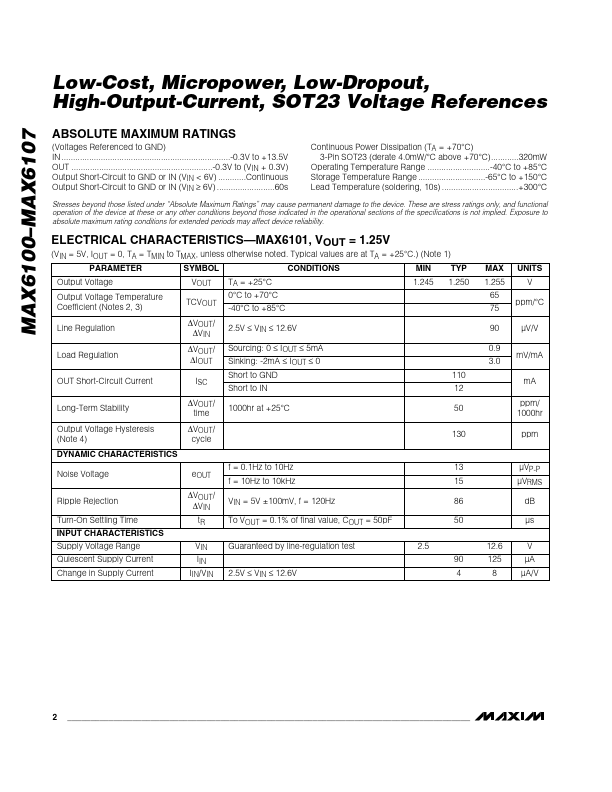

Additional preview pages of the MAX6100 datasheet.

The MAX6100 MAX6107 are low-cost, low-dropout (LDO), micropower voltage references.

o Ultra-Small 3-Pin SOT23 Package o Low Cost o No Output Capacitor Required o Stable with Capacitive Loads o Load Regulation (2mA Sink): 8mV/mA (max) Load Regulation (5mA Source): 0.9mV/mA (max) o ±0.4% (max) Initial Accuracy o Low 75ppm/°C Temperature Coefficient o 125µA (max) Quiescent Supply Current o 50mV Dropout at 1mA Load Current Ordering Information PART TEMP RANGE.
