MAX6126 - Ultra-High-Precision Ultra-Low-Noise Series Voltage Reference

Product Overview

Maxim Integrated

📥 Download Datasheet

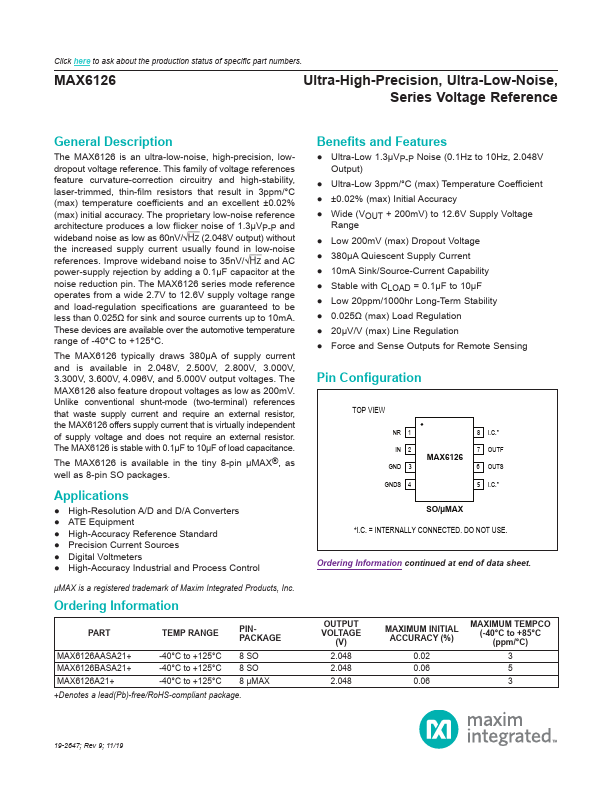

MAX6126 Ultra-High-Precision Ultra-Low-Noise Series Voltage Reference by Maxim Integrated - Datasheet Preview — Datasheet preview – MAX6126

Datasheet Details

Part number	MAX6126
Manufacturer	Maxim Integrated
File Size	3.56 MB
Description	Ultra-High-Precision Ultra-Low-Noise Series Voltage Reference
Datasheet	MAX6126 Datasheet
Additional preview pages of the MAX6126 datasheet.

Product details

Description

The MAX6126 is an ultra-low-noise, high-precision, lowdropout voltage reference.

Features

Ultra-Low 1.3μVP-P Noise (0.1Hz to 10Hz, 2.048V Output).
Ultra-Low 3ppm/°C (max) Temperature Coefficient.
±0.02% (max) Initial Accuracy.
Wide (VOUT + 200mV) to 12.6V Supply Voltage Range.
Low 200mV (max) Dropout Voltage.
380μA Quiescent Supply Current.
10mA Sink/Source-Current Capability.
Stable with CLOAD = 0.1μF to 10μF.
Low 20ppm/1000hr Long-Term Stability.
0.025Ω (max) Load Regulation.
