MAX9927, MAX9924 - Variable Reluctance Sensor Interfaces

Maxim Integrated Products

The MAX9927 by Maxim Integrated Products is a Variable Reluctance Sensor Interfaces. Below is the official datasheet preview.

📥 Download Datasheet

MAX9927 Variable Reluctance Sensor Interfaces by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX9927** Variable Reluctance Sensor Interfaces datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX9927, MAX9924
Manufacturer	Maxim Integrated Products
File Size	1.24 MB
Description	Variable Reluctance Sensor Interfaces
Datasheet	MAX9924_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX9927, MAX9924. Please refer to the document for exact specifications by model.

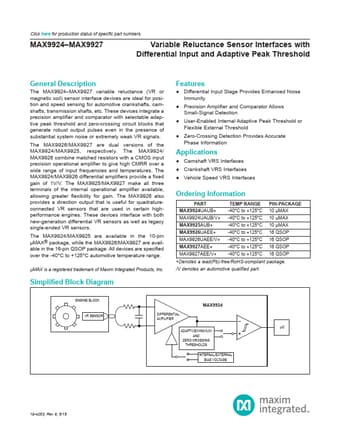

Additional preview pages of the MAX9927 datasheet.

MAX9927 Product details

Description

The MAX9924 MAX9927 variable reluctance (VR or magnetic coil) sensor interface devices are ideal for position and speed sensing for automotive crankshafts, camshafts, transmission shafts, etc.

Features

Differential Input Stage Provides Enhanced Noise Immunity.
Precision Amplifier and Comparator Allows Small-Signal Detection.
User-Enabled Internal Adaptive Peak Threshold or Flexible External Threshold.
Zero-Crossing Detection Provides Accurate Phase Information.
