MAX9922 - High-Side Current-Sense Amplifiers

Maxim Integrated Products

The MAX9922 by Maxim Integrated Products is a High-Side Current-Sense Amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

MAX9922 High-Side Current-Sense Amplifiers by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX9922** High-Side Current-Sense Amplifiers datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX9922
Manufacturer	Maxim Integrated Products
File Size	339.98 KB
Description	High-Side Current-Sense Amplifiers
Datasheet	MAX9922_MaximIntegratedProducts.pdf

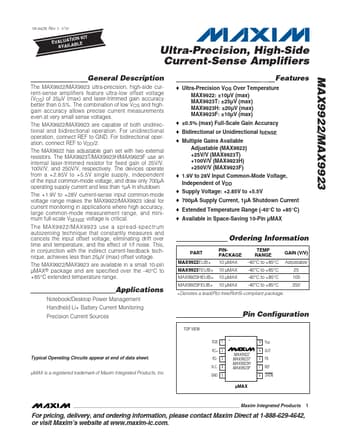

Additional preview pages of the MAX9922 datasheet.

MAX9922 Product details

Description

MAX9922/MAX9923 The MAX9922/MAX9923 ultra-precision, high-side current-sense amplifiers feature ultra-low offset voltage (VOS) of 25µV (max) and laser-trimmed gain accuracy better than 0.5%.The combination of low VOS and highgain accuracy allows precise current measurements even at very small sense voltages.The MAX9922/MAX9923 are capable of both unidirectional and bidirectional operation.For unidirectional operation, connect REF to GND.For bidirectional operation, connect REF to VDD/2. Th

Features

Ultra-Precision VOS Over Temperature MAX9922: ±10µV (max) MAX9923T: ±25µV (max) MAX9923H: ±20µV (max) MAX9923F: ±10µV (max).
±0.5% (max) Full-Scale Gain Accuracy.
Bidirectional or Unidirectional ISENSE.
Multiple Gains Available Adjustable (MAX9922) +25V/V (MAX9923T) +100V/V (MAX9923H) +250V/V (MAX9923F).
1.9V to 28V Input Common-Mode Voltage, Independent of VDD.
Supply Voltage: +2.85V to +5.5V.
700µA Supply Current, 1µA Shutdown Cur.
