MAX990, MAX985 - Micropower / Low-Voltage / SOT23 / Rail-to-Rail I/O Comparators

Maxim

The MAX990 by Maxim is a Micropower / Low-Voltage / SOT23 / Rail-to-Rail I/O Comparators. Below is the official datasheet preview.

📥 Download Datasheet

MAX990 Micropower / Low-Voltage / SOT23 / Rail-to-Rail I/O Comparators by Maxim - Datasheet Preview — Official preview page of the **MAX990** Micropower / Low-Voltage / SOT23 / Rail-to-Rail I/O Comparators datasheet (Maxim).

Datasheet Details

Part number	MAX990, MAX985
Manufacturer	Maxim
File Size	367.52 KB
Description	Micropower / Low-Voltage / SOT23 / Rail-to-Rail I/O Comparators
Datasheet	MAX985_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX990, MAX985. Please refer to the document for exact specifications by model.

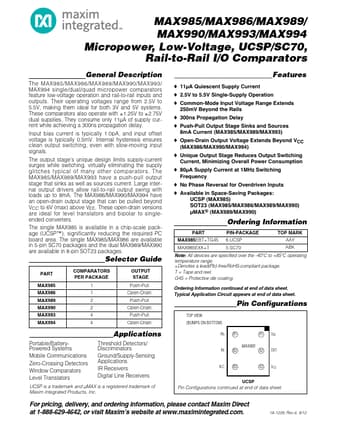

Additional preview pages of the MAX990 datasheet.

MAX990 Product details

Description

The MAX985/MAX986/MAX989/MAX990/MAX993/ MAX994 single/dual/quad micropower comparators feature low-voltage operation and rail-to-rail inputs and outputs.

Features

o 11µA Quiescent Supply Current o 2.5V to 5.5V Single-Supply Operation o Common-Mode Input Voltage Range Extends 250mV Beyond the Rails o 300ns Propagation Delay o Push-Pull Output Stage Sinks and Sources 8mA Current (MAX985/MAX989/MAX993) o Open-Drain Output Voltage Extends Beyond VCC (MAX986/MAX990/MAX994) o Unique Output Stage Reduces Output Switching Current, Minimizing Overall Power Consumption o 80µA Supply Current at 1MHz Switching Frequency o No Phase Reversal for Overdriven Inputs o Av.
