MAX5093 - (MAX5092 / MAX5093) LDOs

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAX5093
Manufacturer	Maxim Integrated Products
File Size	719.27 KB
Description	(MAX5092 / MAX5093) LDOs
Datasheet	MAX5093 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX5093, MAX5092. Please refer to the document for exact specifications by model.

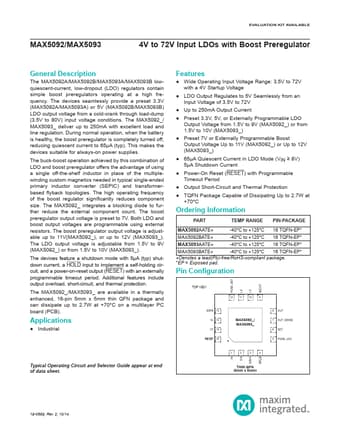

Additional preview pages of the MAX5093 datasheet.

Product details

Description

The MAX5092A/MAX5092B/MAX5093A/MAX5093B lowquiescent-current, low-dropout (LDO) regulators contain simple boost preregulators operating at a high frequency.

Features

include output overload, short-circuit, and thermal protection. The MAX5092_/MAX5093_ are available in a thermally enhanced, 16-pin 5mm x 5mm thin QFN package and can dissipate up to 2.7W at +70°C on a multilayer PC board. Features.
Wide Operating Input Voltage Range: 3.5V to 72V with a 4V Startup Voltage.
LDO Output Regulates to 5V Seamlessly from an Input Voltage of 3.5V to 72V.
Up to 250mA Output Current.
Preset 3.3V, 5V, or Externally Programmable LDO Out.
