MAX4695 - Low-Voltage 60ohm Dual SPDT Analog Switch

Product Overview

Maxim Integrated Products

Part number	MAX4695
Manufacturer	Maxim Integrated Products
File Size	422.79 KB
Description	Low-Voltage 60ohm Dual SPDT Analog Switch
Datasheet	MAX4695 Datasheet

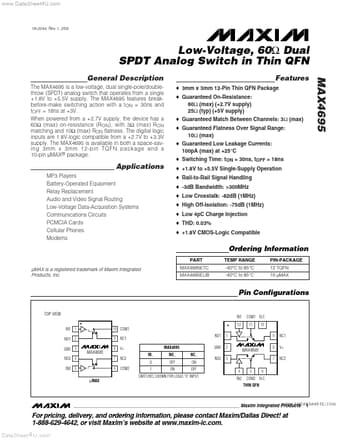

Additional preview pages of the MAX4695 datasheet.

The MAX4695 is a low-voltage, dual single-pole/doublethrow (SPDT) analog switch that operates from a single +1.8V to +5.5V supply.

breakbefore-make switching action with a tON = 30ns and tOFF = 18ns at +3V. When powered from a +2.7V supply, the device has a 60Ω (max) on-resistance (RON), with 3Ω (max) RON matching and 10Ω (max) RON flatness. The digital logic inputs are 1.8V-logic compatible from a +2.7V to +3.3V supply. The MAX4695 is available in both a space-saving 3mm x 3mm 12-pin TQFN package and a 10-pin µMAX® package.
Guaranteed On-Resistance: 60Ω (max) (+2.7V supply) 25Ω (typ) (+5V supply).
Guaran.
