MAX4006, MAX4004 High-Side Current Monitors

MAX4006 Description

www.DataSheet4U.com 19-2742; Rev 1; 5/03 High-Accuracy, High-Side Current Monitors in SOT23 General .
The MAX4004/MAX4006 precision, high-side, current monitors are specifically designed for monitoring photodiode current in fiber applications.

MAX4006 Features

* o Wide Reference Current Dynamic Range Guaranteed 250nA to 2.5mA with 5% Accuracy Extended 10nA to 10mA with 10% Monitor Accuracy o Current (MAX4004) or Voltage (MAX4006) Monitor Output o Reference Current-Limit Protection (20mA, typ) o Voltage Clamp Protects Subsequent Output Circuitry o +2.7V to +

MAX4006 Applications

* They offer a connection point for the reference current and a monitor output that produces a signal proportional to the reference current. The monitor output of the MAX4004 is a current proportional to the reference current. The monitor output of the MAX4006 is a voltage proportional to the referen

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX4006, MAX4004. Please refer to the document for exact specifications by model.

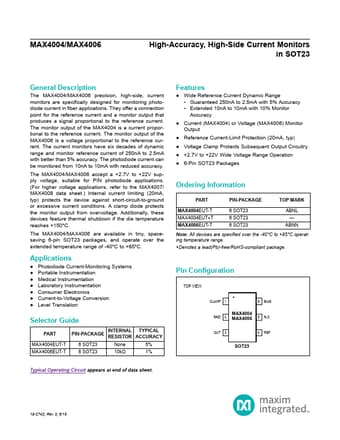

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX4006, MAX4004
Manufacturer
Maxim Integrated ↗ Products
File Size
437.29 KB
Datasheet
MAX4004_MaximIntegratedProducts.pdf
Description
High-Side Current Monitors
Note
This datasheet PDF includes multiple part numbers: MAX4006, MAX4004.
Please refer to the document for exact specifications by model.
