MAX4008, MAX4007 High-Side Current Monitors

MAX4008 Description

www.DataSheet4U.com 19-2743; Rev 1; 5/03 High-Accuracy, 76V, High-Side Current Monitors in SOT23 General .
The MAX4007/MAX4008 precision, high-side, high-voltage current monitors are specifically designed for monitoring photodiode current in fiber applicati.

MAX4008 Features

* o Wide Reference Current Dynamic Range Guaranteed 250nA to 2.5mA with 5% Monitor Accuracy Extended 10nA to 10mA with 10% Monitor Accuracy o Current (MAX4007) or Voltage (MAX4008) Monitor Outputs o Reference Current-Limit Protection (20mA, typ) o Voltage Clamp Protects Subsequent Output Circuitry o +

MAX4008 Applications

* They offer a connection point for the reference current and a monitor output that produces a signal proportional to the reference current. The monitor output of the MAX4007 is a current proportional to the reference current. The monitor output of the MAX4008 is a voltage proportional to the referen

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX4008, MAX4007. Please refer to the document for exact specifications by model.

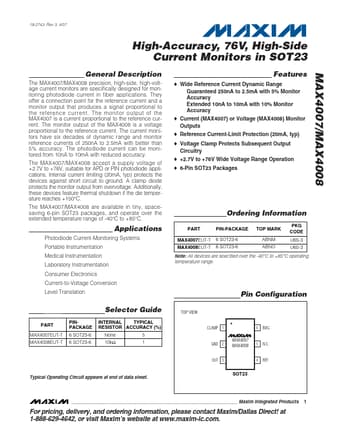

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX4008, MAX4007
Manufacturer
Maxim Integrated ↗ Products
File Size
227.00 KB
Datasheet
MAX4007_MaximIntegratedProducts.pdf
Description
High-Side Current Monitors
Note
This datasheet PDF includes multiple part numbers: MAX4008, MAX4007.
Please refer to the document for exact specifications by model.
