MAX4694 - Low-Voltage 8:1 Mux/Dual 4:1 Mux/Triple SPDT/ Quad SPDT

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX4694
Manufacturer	Maxim Integrated
File Size	244.20 KB
Description	Low-Voltage 8:1 Mux/Dual 4:1 Mux/Triple SPDT/ Quad SPDT
Datasheet	MAX4694 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX4694, MAX4691. Please refer to the document for exact specifications by model.

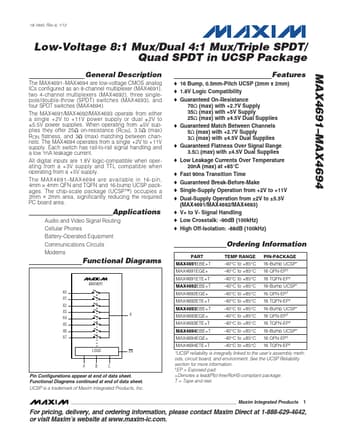

Additional preview pages of the MAX4694 datasheet.

Product details

Description

The MAX4691 MAX4694 are low-voltage CMOS analog ICs configured as an 8-channel multiplexer (MAX4691), two 4-channel multiplexers (MAX4692), three singlepole/double-throw (SPDT) switches (MAX4693), and four SPDT switches (MAX4694).
