MAX3349EA

The MAX3349EA is USB 2.0 Full Speed TRansceiver designed by Maxim Integrated Products.

Product Overview

Maxim Integrated Products

Part number	MAX3349EA
Manufacturer	Maxim Integrated Products
File Size	415.28 KB
Description	USB 2.0 Full Speed TRansceiver
Datasheet	MAX3349EA_MaximIntegratedProducts.pdf

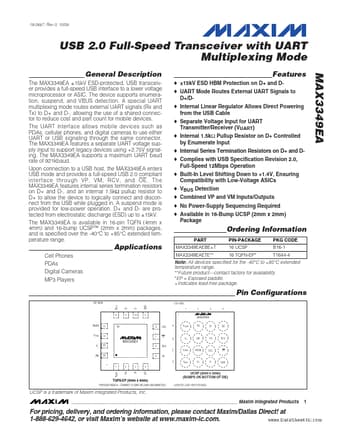

Additional preview pages of the MAX3349EA datasheet.

The MAX3349EA ±15kV ESD-protected, USB transceiver provides a full-speed USB interface to a lower voltage microprocessor or ASIC.

a separate UART voltage supply input to support legacy devices using +2.75V signaling. The MAX3349EA supports a maximum UART baud rate of 921kbaud. Upon connection to a USB host, the MAX3349EA enters USB mode and provides a full-speed USB 2.0 compliant interface through VP, VM, RCV, and OE . The MAX3349EA features internal series termination resistors on D+ and D-, and an internal 1.5kΩ pullup resistor to D+ to allow the device to logically connect and disconnect from the USB while plugged in. A.
