MAX3345E

The MAX3345E is +-5kV ESD-Protected USB Transceivers designed by Maxim Integrated Products.

Product Overview

Maxim Integrated Products

Part number	MAX3345E, MAX3344E
Manufacturer	Maxim Integrated Products
File Size	436.83 KB
Description	+-5kV ESD-Protected USB Transceivers
Datasheet	MAX3344E_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX3345E, MAX3344E. Please refer to the document for exact specifications by model.

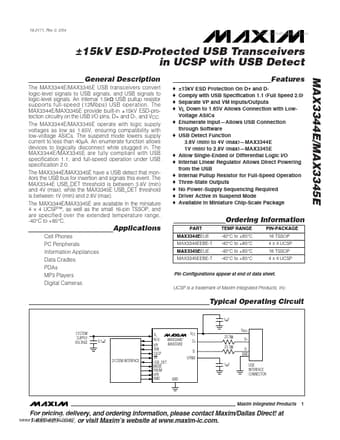

Additional preview pages of the MAX3345E datasheet.

The MAX3344E/MAX3345E USB transceivers convert logic-level signals to USB signals, and USB signals to logic-level signals.

D Protection On D+ and DComply with USB Specification 1.1 (Full Speed 2.0) Separate VP and VM Inputs/Outputs VL Down to 1.65V Allows Connection with LowVoltage ASICs Enumerate Input.
Allows USB Connection through Software USB Detect Function 3.6V (min) to 4V (max).
MAX3344E 1V (min) to 2.8V (max).
MAX3345E Allow Single-Ended or Differential Logic I/O Internal Linear Regulator Allows Direct Powering from the USB Internal Pullup Resistor for Full-Speed Operation Three-State Ou.
