MAX3349E

The MAX3349E is USB 2.0 Full Speed TRansceiver designed by Maxim Integrated Products.

Product Overview

Maxim Integrated Products

Part number	MAX3349E
Manufacturer	Maxim Integrated Products
File Size	207.83 KB
Description	USB 2.0 Full Speed TRansceiver
Datasheet	MAX3349E_MaximIntegratedProducts.pdf

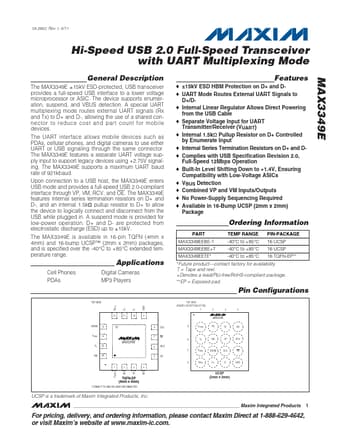

Additional preview pages of the MAX3349E datasheet.

The MAX3349E ±15kV ESD-protected, USB transceiver provides a full-speed USB interface to a lower voltage microprocessor or ASIC.

a separate UART voltage supply input to support legacy devices using +2.75V signaling. The MAX3349E supports a maximum UART baud rate of 921kbaud. Upon connection to a USB host, the MAX3349E enters USB mode and provides a full-speed USB 2.0 compliant interface through VP, VM, RCV, and OE. The MAX3349E features internal series termination resistors on D+ and D-, and an internal 1.5kΩ pullup resistor to D+ to allow the device to logically connect and disconnect from the USB while plugged in. A sus.
