MAX241E, MAX206E - 5V RS-232 Transceivers

Maxim Integrated Products

The MAX241E by Maxim Integrated Products is a 5V RS-232 Transceivers. Below is the official datasheet preview.

📥 Download Datasheet

MAX241E 5V RS-232 Transceivers by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX241E** 5V RS-232 Transceivers datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX241E, MAX206E
Manufacturer	Maxim Integrated Products
File Size	340.25 KB
Description	5V RS-232 Transceivers
Datasheet	MAX206E_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX241E, MAX206E. Please refer to the document for exact specifications by model.

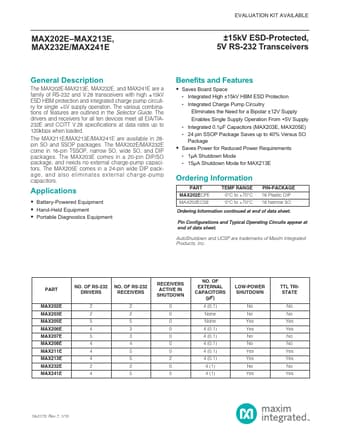

Additional preview pages of the MAX241E datasheet.

MAX241E Product details

Description

The MAX202E-MAX213E, MAX232E, and MAX241E are a family of RS-232 and V.28 transceivers with high ±15kV ESD HBM protection and integrated charge pump circuitry for single +5V supply operation.

Features

are outlined in the Selector Guide. The drivers and receivers for all ten devices meet all EIA/TIA232E and CCITT V.28 specifications at data rates up to 120kbps when loaded. The MAX211E/MAX213E/MAX241E are available in 28pin SO and SSOP packages. The MAX202E/MAX232E come in 16-pin TSSOP, narrow SO, wide SO, and DIP packages. The MAX203E comes in a 20-pin DIP/SO package, and needs no external charge-pump capacitors. The MAX205E comes in a 24-pin wide DIP package, and also eliminates external char.
