MAX2410 - Low-Cost RF Up/Downconverter with LNA and PA Driver

Maxim

The MAX2410 by Maxim is a Low-Cost RF Up/Downconverter with LNA and PA Driver. Below is the official datasheet preview.

Datasheet Details

Part number	MAX2410
Manufacturer	Maxim
File Size	179.41 KB
Description	Low-Cost RF Up/Downconverter with LNA and PA Driver
Datasheet	MAX2410_MaximIntegratedProducts.pdf

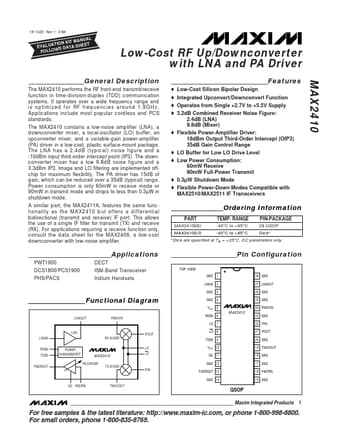

Additional preview pages of the MAX2410 datasheet.

The MAX2410 performs the RF front-end transmit/receive function in time-division-duplex (TDD) communication systems.

o Low-Cost Silicon Bipolar Design o Integrated Upconvert/Downconvert Function o Operates from Single +2.7V to +5.5V Supply o 3.2dB Combined Receiver Noise Figure: 2.4dB (LNA) 9.8dB (Mixer) o Flexible Power-Amplifier Driver: 18dBm Output Third-Order Intercept (OIP3) 35dB Gain Control Range o LO Buffer for Low LO Drive Level o Low Power Consumption: 60mW Receive 90mW Full-Power Transmit o 0.3µW Shutdown Mode o Flexible Power-Down Modes Compatible with MAX2510/MAX2511 IF Transceivers _____________.
