MAX2021 - High Dynamic Range Direct Up/Down Conversion Quadrature Mod/Demod

Maxim Integrated Products

The MAX2021 by Maxim Integrated Products is a High Dynamic Range Direct Up/Down Conversion Quadrature Mod/Demod. Below is the official datasheet preview.

📥 Download Datasheet

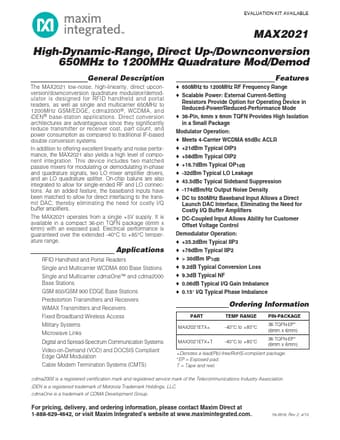

MAX2021 High Dynamic Range Direct Up/Down Conversion Quadrature Mod/Demod by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX2021** High Dynamic Range Direct Up/Down Conversion Quadrature Mod/Demod datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX2021
Manufacturer	Maxim Integrated Products
File Size	430.46 KB
Description	High Dynamic Range Direct Up/Down Conversion Quadrature Mod/Demod
Datasheet	MAX2021_MaximIntegratedProducts.pdf
Additional preview pages of the MAX2021 datasheet.

MAX2021 Product details

Description

The MAX2021 low-noise, high-linearity, direct upconversion/downconversion quadrature modulator/demodulator is designed for RFID handheld and portal readers, as well as single and multicarrier 750MHz to 1200MHz GSM/EDGE, cdma2000 ® , WCDMA, and iDEN ® base-station applications.

Features

750MHz to 1200MHz RF Frequency Range.
Scalable Power: External Current-Setting Resistors Provide Option for Operating Device in Reduced-Power/Reduced-Performance Mode.
36-Pin, 6mm x 6mm TQFN Provides High Isolation in a Small Package Modulator Operation:.
Meets 4-Carrier WCDMA 65dBc ACLR.
+21dBm Typical OIP3.
+58dBm Typical OIP2.
+16.7dBm Typical OP1dB.
-32dBm Typical LO Leakage.
43.5dBc Typical Sideband Suppressio.
