MAX2022 - Direct Up/Downconversion 1500MHz to 3000MHz Quadrature Modulator/Demodulator

Maxim Integrated

The MAX2022 by Maxim Integrated is a Direct Up/Downconversion 1500MHz to 3000MHz Quadrature Modulator/Demodulator. Below is the official datasheet preview.

📥 Download Datasheet

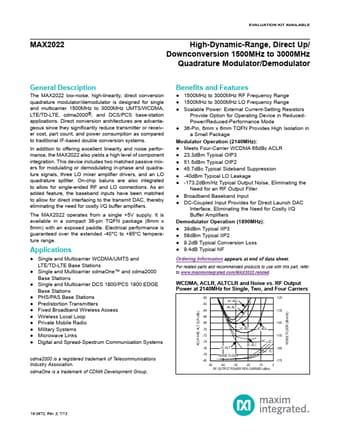

MAX2022 Direct Up/Downconversion 1500MHz to 3000MHz Quadrature Modulator/Demodulator by Maxim Integrated - Datasheet Preview — Official preview page of the **MAX2022** Direct Up/Downconversion 1500MHz to 3000MHz Quadrature Modulator/Demodulator datasheet (Maxim Integrated).

Datasheet Details

Part number	MAX2022
Manufacturer	Maxim Integrated
File Size	1.22 MB
Description	Direct Up/Downconversion 1500MHz to 3000MHz Quadrature Modulator/Demodulator
Datasheet	MAX2022-MaximIntegrated.pdf
Additional preview pages of the MAX2022 datasheet.

MAX2022 Product details

Description

The MAX2022 low-noise, high-linearity, direct conversion quadrature modulator/demodulator is designed for single and multicarrier 1500MHz to 3000MHz UMTS/WCDMA, LTE/TD-LTE, cdma2000®, and DCS/PCS base-station applications.

Features

1500MHz to 3000MHz RF Frequency Range.
1500MHz to 3000MHz LO Frequency Range.
Scalable Power: External Current-Setting Resistors Provide Option for Operating Device in ReducedPower/Reduced-Performance Mode.
36-Pin, 6mm x 6mm TQFN Provides High Isolation in a Small Package Modulator Operation (2140MHz):.
Meets Four-Carrier WCDMA 65dBc ACLR.
23.3dBm Typical OIP3.
51.5dBm Typical OIP2.
45.7dBc Typical Sideband Suppression.
-40dBm Typical LO Lea.
