MAX14515 - He Smallest Liquid Lens Driver

Name: MAX14515
SKU: MAX14515-647819

Maxim Integrated Products

The MAX14515 by Maxim Integrated Products is a He Smallest Liquid Lens Driver. Below is the official datasheet preview.

Datasheet Details

Part number	MAX14515
Manufacturer	Maxim Integrated Products
File Size	194.35 KB
Description	He Smallest Liquid Lens Driver
Datasheet	MAX14515_MaximIntegratedProducts.pdf

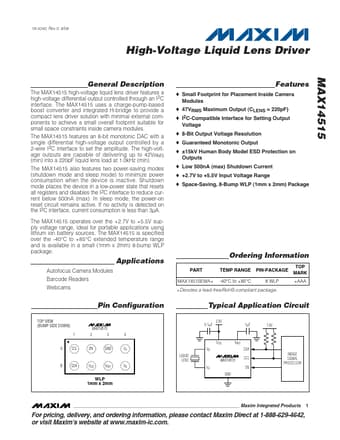

Additional preview pages of the MAX14515 datasheet.

The MAX14515 high-voltage liquid lens driver

a high-voltage differential output controlled through an I2C interface. The MAX14515 uses a charge-pump-based boost converter and integrated H-bridge to provide a compact lens driver solution with minimal external components to achieve a small overall footprint suitable for small space constraints inside camera modules. The MAX14515 features an 8-bit monotonic DAC with a single differential high-voltage output controlled by a 2-wire I2C interface to set the amplitude. The high-voltage outputs ar.
