MAX13485E - (MAX13485E / MAX13486E) Half Duplex Transceiveer

Maxim Integrated Products

The MAX13485E by Maxim Integrated Products is a (MAX13485E / MAX13486E) Half Duplex Transceiveer. Below is the official datasheet preview.

📥 Download Datasheet

MAX13485E (MAX13485E / MAX13486E) Half Duplex Transceiveer by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX13485E** (MAX13485E / MAX13486E) Half Duplex Transceiveer datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX13485E
Manufacturer	Maxim Integrated Products
File Size	307.89 KB
Description	(MAX13485E / MAX13486E) Half Duplex Transceiveer
Datasheet	MAX13485E_MaximIntegratedProducts.pdf

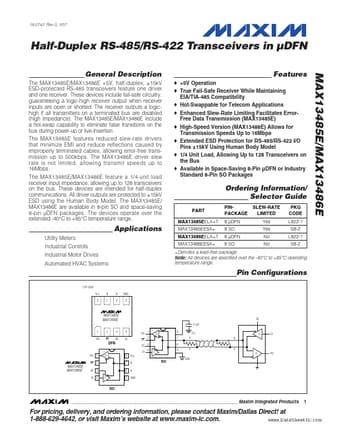

Additional preview pages of the MAX13485E datasheet.

MAX13485E Product details

Description

The MAX13485E/MAX13486E +5V, half-duplex, ±15kV ESD-protected RS-485 transceivers feature one driver and one receiver.

Features

reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free transmission up to 500kbps. The MAX13486E driver slew rate is not limited, allowing transmit speeds up to 16Mbps. The MAX13485E/MAX13486E feature a 1/4-unit load receiver input impedance, allowing up to 128 transceivers on the bus. These devices are intended for half-duplex communications. All driver outputs are protected to ±15kV ESD using the Human Body Model. The MAX1.
