MAX13482E, MAX13481E - (MAX13481E - MAX13483E) ESD-Protected USB Transceivers

Maxim Integrated Products

The MAX13482E by Maxim Integrated Products is a (MAX13481E - MAX13483E) ESD-Protected USB Transceivers. Below is the official datasheet preview.

📥 Download Datasheet

MAX13482E (MAX13481E - MAX13483E) ESD-Protected USB Transceivers by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX13482E** (MAX13481E - MAX13483E) ESD-Protected USB Transceivers datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX13482E, MAX13481E
Manufacturer	Maxim Integrated Products
File Size	334.17 KB
Description	(MAX13481E - MAX13483E) ESD-Protected USB Transceivers
Datasheet	MAX13481E_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX13482E, MAX13481E. Please refer to the document for exact specifications by model.

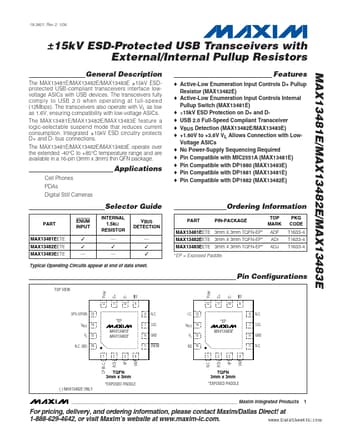

Additional preview pages of the MAX13482E datasheet.

MAX13482E Product details

Description

The MAX13481E/MAX13482E/MAX13483E ±15kV ESDprotected USB-compliant transceivers interface lowvoltage ASICs with USB devices.

Features

Active-Low Enumeration Input Controls D+ Pullup Resistor (MAX13482E).
Active-Low Enumeration Input Controls Internal Pullup Switch (MAX13481E).
±15kV ESD Protection on D+ and D.
USB 2.0 Full-Speed Compliant Transceiver.
VBUS Detection (MAX13482E/MAX13483E).
+1.60V to +3.6V VL Allows Connection with LowVoltage ASICs.
No Power-Supply Sequencing Required.
Pin Compatible with MIC2551A (MAX13481E).
Pin Compatible with DP.
