MAX13430E - RS-485 Transceivers

General Description

The MAX13430E

MAX13433E are full- and half-duplex RS-485 transceivers that feature an adjustable low-voltage logic interface for operation in multivoltage systems.

This allows direct interfacing to low-voltage ASIC/FPGAs without extra components.

MAX13433E RS-485 trans

Key Features

  • Wide +3V to +5V Input Supply Range.
  • Low-Voltage Logic Interface +1.62V (min).
  • Ultra-Low Supply Current in Shutdown Mode 10µA ICC (max), 1µA IL (max).
  • Thermal Shutdown Protection.
  • Hot-Swap Input Structures on DE and RE.
  • 1/8-Unit Load Allows Up to 256 Transceivers on the Bus.
  • Enhanced Slew-Rate Limiting (MAX13430E/MAX13432E).
  • Extended ESD Protection for RS-485 I/O Pins ±30kV Human Body Model ±15kV Air-Gap Discharge per IEC 61.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX1343 Multichannel ADCs/DACs Maxim Integrated
MAX134 3 Digit DMM Circuit Maxim
MAX13487E Half-Duplex RS-485-Compatible Transceiver Analog Devices
MAX13488E Half-Duplex RS-485-Compatible Transceiver Analog Devices
MAX130 3 Digit A/D Converters with Bandgap Refrence Maxim

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX13431E RS-485 Transceivers
MAX13432E RS-485 Transceivers
MAX13433E RS-485 Transceivers
MAX13442E Fail-Safe RS-485/J1708 Transceivers
MAX13443E Fail-Safe RS-485/J1708 Transceivers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

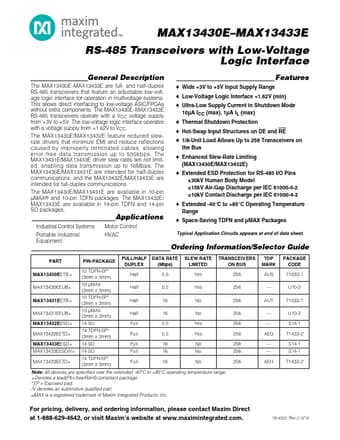

AVAILABLE MAX13430E–MAX13433E RS-485 Transceivers with Low-Voltage Logic Interface General Description The MAX13430E–MAX13433E are full- and half-duplex RS-485 transceivers that feature an adjustable low-voltage logic interface for operation in multivoltage systems. This allows direct interfacing to low-voltage ASIC/FPGAs without extra components. The MAX13430E–MAX13433E RS-485 transceivers operate with a VCC voltage supply from +3V to +5V. The low-voltage logic interface operates with a voltage supply from +1.62V to VCC. The MAX13430E/MAX13432E feature reduced slewrate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission up to 500kbps.
