DS8314, DS8313 - Smart Card Interface

Name: DS8314
SKU: DS8314-648907

Maxim Integrated Products

📥 Download Datasheet

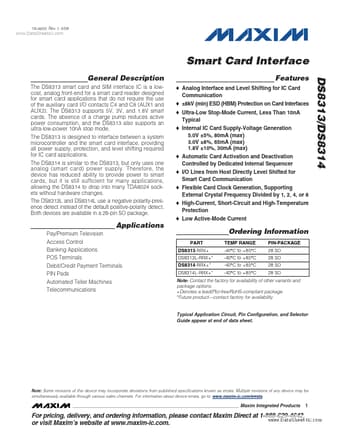

DS8314 Datasheet Preview — This datasheet PDF includes multiple part numbers: DS8314, DS8313. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	DS8314, DS8313
Manufacturer	Maxim Integrated Products
File Size	307.80 KB
Description	Smart Card Interface
Datasheet	DS8313_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: DS8314, DS8313. Please refer to the document for exact specifications by model.

DS8314 Product details

Description

The DS8313 smart card and SIM interface IC is a lowcost, analog front-end for a smart card reader designed for smart card applications that do not require the use of the auxiliary card I/O contacts C4 and C8 (AUX1 and AUX2).

Features

Analog Interface and Level Shifting for IC Card Communication.
±8kV (min) ESD (HBM) Protection on Card Interfaces.
Ultra-Low Stop-Mode Current, Less Than 10nA Typical.
Internal IC Card Supply-Voltage Generation 5.0V ±5%, 80mA (max) 3.0V ±8%, 65mA (max) 1.8V ±10%, 30mA (max).
Automatic Card Activation and Deactivation Controlled by Dedicated Internal Sequencer.
I/O Lines from Host Directly Level Shifted for Smart Card Communication.
