DS8307A - 400mA Low Dropout Voltage Linear Regulator

Name: DS8307A
SKU: DS8307A-1524302

📥 Download Datasheet

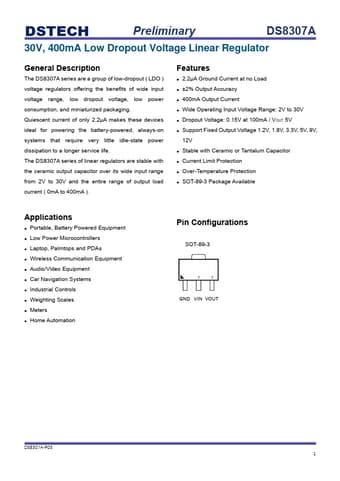

DS8307A Datasheet Preview — Preview of DS8307A PDF

Datasheet Details

Part number	DS8307A
Manufacturer	DSTECH
File Size	579.82 KB
Description	400mA Low Dropout Voltage Linear Regulator
Datasheet	DS8307A-DSTECH.pdf

DS8307A Product details

Description

The DS8307A series are a group of low-dropout ( LDO ) voltage regulators offering the benefits of wide input voltage range, low dropout voltage, low power consumption, and miniaturized packaging.

Features

2.2μA Ground Current at no Load.
±2% Output Accuracy.
400mA Output Current.
Wide Operating Input Voltage Range: 2V to 30V.
Dropout Voltage: 0.15V at 100mA / VOUT 5V.
Support Fixed Output Voltage 1.2V, 1.8V, 3.3V, 5V, 9V, 12V.
Stable with Ceramic or Tantalum Capacitor.
Current Limit Protection.
Over-Temperature Protection.
SOT-89-3 Package Available.
