DG417L - Logic-compatible Analog Switches

Name: DG417L
SKU: DG417L-604378

Maxim Integrated Products

📥 Download Datasheet

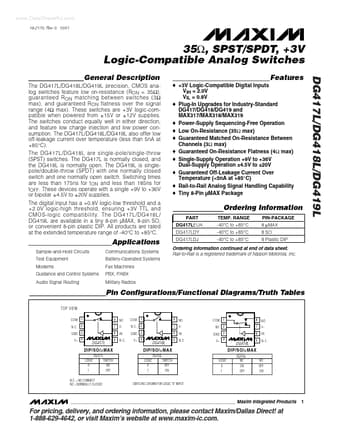

DG417L Datasheet Preview — Preview of DG417L PDF

Datasheet Details

Part number	DG417L
Manufacturer	Maxim Integrated Products
File Size	339.01 KB
Description	Logic-compatible Analog Switches
Datasheet	DG417L_MaximIntegratedProducts.pdf

DG417L Product details

Description

The DG417L/DG418L/DG419L precision, CMOS analog switches feature low on-resistance (RON = 35Ω), guaranteed R ON matching between switches (3 Ω max), and guaranteed RON flatness over the signal range (4Ω max).

Features

o +3V Logic-Compatible Digital Inputs VIH = 2.0V VIL = 0.8V o Plug-In Upgrades for Industry-Standard DG417/DG418/DG419 and MAX317/MAX318/MAX319 o Power-Supply Sequencing-Free Operation o Low On-Resistance (35Ω max) o Guaranteed Matched On-Resistance Between Channels (3Ω max) o Guaranteed On-Resistance Flatness (4Ω max) o Single-Supply Operation +9V to +36V Dual-Supply Operation ±4.5V to ±20V o Guaranteed Off-Leakage Current Over Temperature (.
