DG408, DG409 - CMOS Analog Multiplexers

Name: DG408
SKU: DG408-702489

Maxim Integrated Products

📥 Download Datasheet

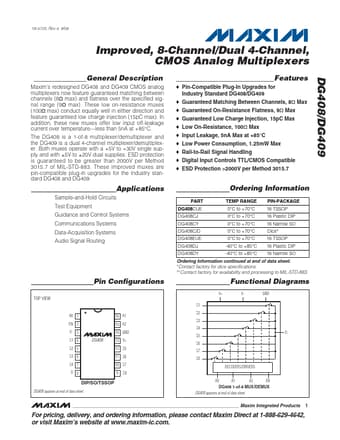

DG408 Datasheet Preview — This datasheet PDF includes multiple part numbers: DG408, DG409. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	DG408, DG409
Manufacturer	Maxim Integrated Products
File Size	135.52 KB
Description	CMOS Analog Multiplexers
Datasheet	DG409_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: DG408, DG409. Please refer to the document for exact specifications by model.

DG408 Product details

Description

Maxim’s redesigned DG408 and DG409 CMOS analog multiplexers now feature guaranteed matching between channels (8Ω max) and flatness over the specified signal range (9Ω max). less than 5nA at +85°C.

Features

Pin-Compatible Plug-In Upgrades for Industry Standard DG408/DG409.
Guaranteed Matching Between Channels, 8Ω Max.
Guaranteed On-Resistance Flatness, 9Ω Max.
Guaranteed Low Charge Injection, 15pC Max.
Low On-Resistance, 100Ω Max.
Input Leakage, 5nA Max at +85°C.
Low Power Consumption, 1.25mW Max.
Rail-to-Rail Signal Handling.
Digital Input Controls TTL/CMOS Compatible.
ESD Protection >2000V per Method 3015.7.
