DG409 - CMOS Analog Multiplexers

Name: DG409
SKU: DG409-702488

Maxim Integrated Products

📥 Download Datasheet

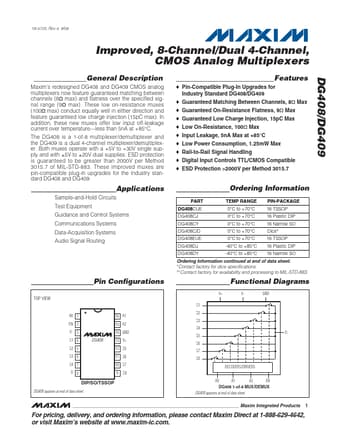

DG409 Datasheet Preview — Preview of DG409 PDF

Datasheet Details

Part number	DG409
Manufacturer	Maxim Integrated Products
File Size	135.52 KB
Description	CMOS Analog Multiplexers
Datasheet	DG409_MaximIntegratedProducts.pdf

DG409 Product details

Description

Maxim’s redesigned DG408 and DG409 CMOS analog multiplexers now feature guaranteed matching between channels (8Ω max) and flatness over the specified signal range (9Ω max). less than 5nA at +85°C.

Features

Pin-Compatible Plug-In Upgrades for Industry Standard DG408/DG409.
Guaranteed Matching Between Channels, 8Ω Max.
Guaranteed On-Resistance Flatness, 9Ω Max.
Guaranteed Low Charge Injection, 15pC Max.
Low On-Resistance, 100Ω Max.
Input Leakage, 5nA Max at +85°C.
Low Power Consumption, 1.25mW Max.
Rail-to-Rail Signal Handling.
Digital Input Controls TTL/CMOS Compatible.
ESD Protection >2000V per Method 3015.7.
