MPQ3386-AEC1 - 50V 6 String White LED Driver

MPS

📥 Download Datasheet

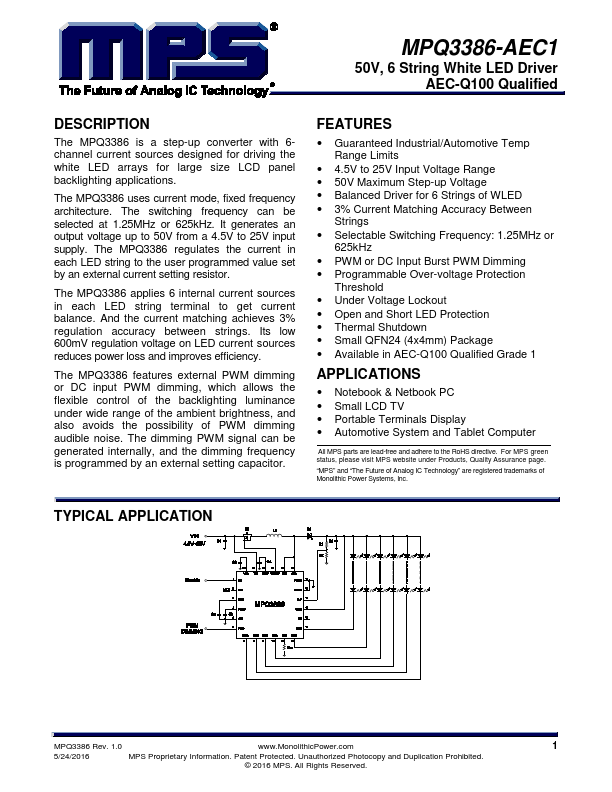

MPQ3386-AEC1 Datasheet Preview — Preview of MPQ3386-AEC1 PDF

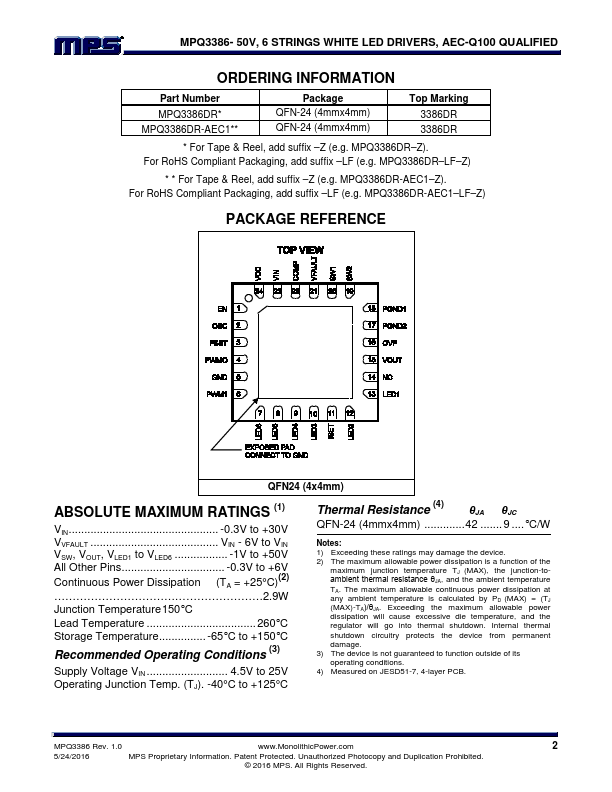

datasheet Preview Page 2

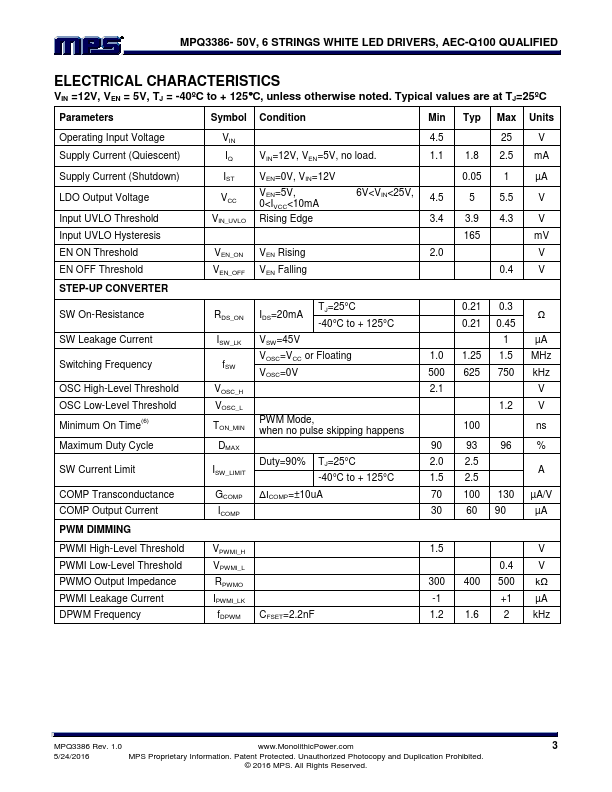

datasheet Preview Page 3

Datasheet Details

Part number: MPQ3386-AEC1
Manufacturer: MPS
File Size: 571.45 KB
Datasheet: MPQ3386-AEC1-MPS.pdf
Description: 50V 6 String White LED Driver

MPQ3386-AEC1 Product details

Description

The MPQ3386 is a step-up converter with 6channel current sources designed for driving the white LED arrays for large size LCD panel backlighting applications.

Features

external PWM dimming or DC input PWM dimming, which allows the flexible control of the backlighting luminance under wide range of the ambient brightness, and also avoids the possibility of PWM dimming audible noise. The dimming PWM signal can be generated internally, and the dimming frequency is programmed by an external setting capacitor.
