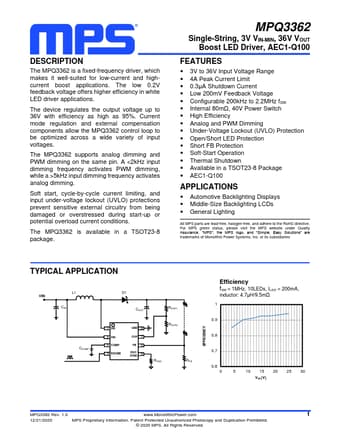

MPQ3362 Datasheet Preview — Preview of MPQ3362 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MPQ3362
Manufacturer	MPS
File Size	1.23 MB
Description	Boost LED Driver
Datasheet	MPQ3362-MPS.pdf

MPQ3362 Product details

Description

The MPQ3362 is a fixed-frequency driver, which makes it well-suited for low-current and highcurrent boost applications.

Features

3V to 36V Input Voltage Range.
4A Peak Current Limit.
0.3μA Shutdown Current.
Low 200mV Feedback Voltage.
Configurable 200kHz to 2.2MHz fSW.
Internal 80mΩ, 40V Power Switch.
High Efficiency.
Analog and PWM Dimming.
Under-Voltage Lockout (UVLO) Protection.
Open/Short LED Protection.
Short FB Protection.
Soft-Start Operation.
Thermal Shutdown.
Available in a TSOT23-8 Package.
AEC1-Q100.
