MP3372 - 8-Channel 50V Sync-Boost WLED Driver

Product Overview

MPS

📥 Download Datasheet

MP3372 8-Channel 50V Sync-Boost WLED Driver by MPS - Datasheet Preview — Datasheet preview – MP3372

Datasheet Details

Part number	MP3372
Manufacturer	MPS
File Size	971.08 KB
Description	8-Channel 50V Sync-Boost WLED Driver
Datasheet	MP3372 Datasheet
Additional preview pages of the MP3372 datasheet.

Product details

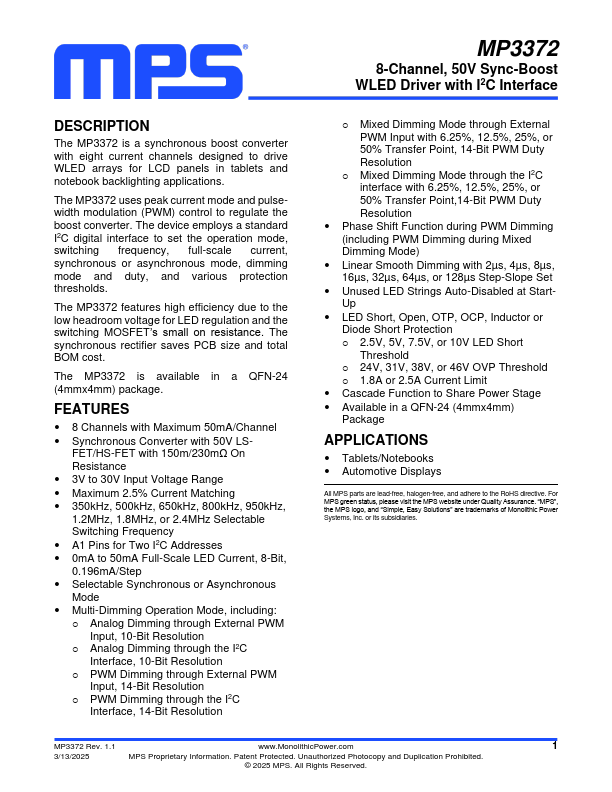

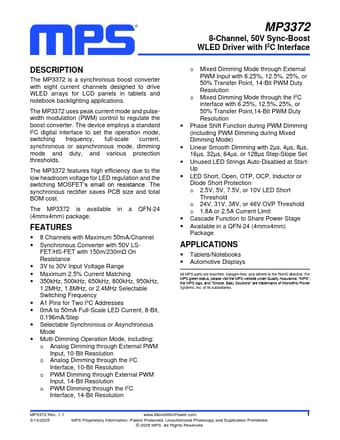

Description

The MP3372 is a synchronous boost converter with eight current channels designed to drive WLED arrays for LCD panels in tablets and notebook backlighting applications.

Features

high efficiency due to the low headroom voltage for LED regulation and the switching MOSFET’s small on resistance. The synchronous rectifier saves PCB size and total BOM cost. The MP3372 is available in a QFN-24 (4mmx4mm) package.
