MP3371 - Boost WLED Driver

Product Overview

MPS

📥 Download Datasheet

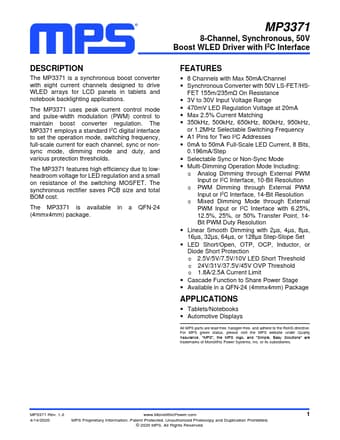

MP3371 Boost WLED Driver by MPS - Datasheet Preview — Datasheet preview – MP3371

Datasheet Details

Part number	MP3371
Manufacturer	MPS
File Size	1.42 MB
Description	Boost WLED Driver
Datasheet	MP3371 Datasheet
Additional preview pages of the MP3371 datasheet.

Product details

Description

The MP3371 is a synchronous boost converter with eight current channels designed to drive WLED arrays for LCD panels in tablets and notebook backlighting applications.

Features

high efficiency due to lowheadroom voltage for LED regulation and a small on resistance of the switching MOSFET. The synchronous rectifier saves PCB size and total BOM cost. The MP3371 is available in a QFN-24 (4mmx4mm) package.
