MP3301 - Fixed-Frequency Step-Up Driver

MPS

📥 Download Datasheet

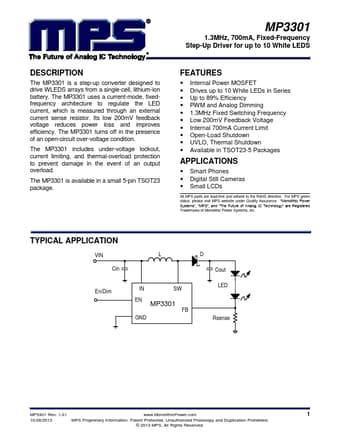

MP3301 Datasheet Preview — Preview of MP3301 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP3301
Manufacturer	MPS
File Size	453.08 KB
Description	Fixed-Frequency Step-Up Driver
Datasheet	MP3301-MPS.pdf

MP3301 Product details

Description

The MP3301 is a step-up converter designed to drive WLEDS arrays from a single-cell, lithium-ion battery.

Features

Internal Power MOSFET.
Drives up to 10 White LEDs in Series.
Up to 89% Efficiency.
PWM and Analog Dimming.
1.3MHz Fixed Switching Frequency.
Low 200mV Feedback Voltage.
Internal 700mA Current Limit.
Open-Load Shutdown.
UVLO, Thermal Shutdown.
Available in TSOT23-5 Packages.
