MP29373 - Dual 1.5A 23V Step-Down Converter

MPS

The MP29373 by MPS is a Dual 1.5A 23V Step-Down Converter. Below is the official datasheet preview.

📥 Download Datasheet

MP29373 Dual 1.5A 23V Step-Down Converter by MPS - Datasheet Preview — Official preview page of the MP29373 Dual 1.5A 23V Step-Down Converter datasheet (MPS).

Datasheet Details

Part number	MP29373
Manufacturer	MPS
File Size	247.95 KB
Description	Dual 1.5A 23V Step-Down Converter
Datasheet	MP29373-MPS.pdf

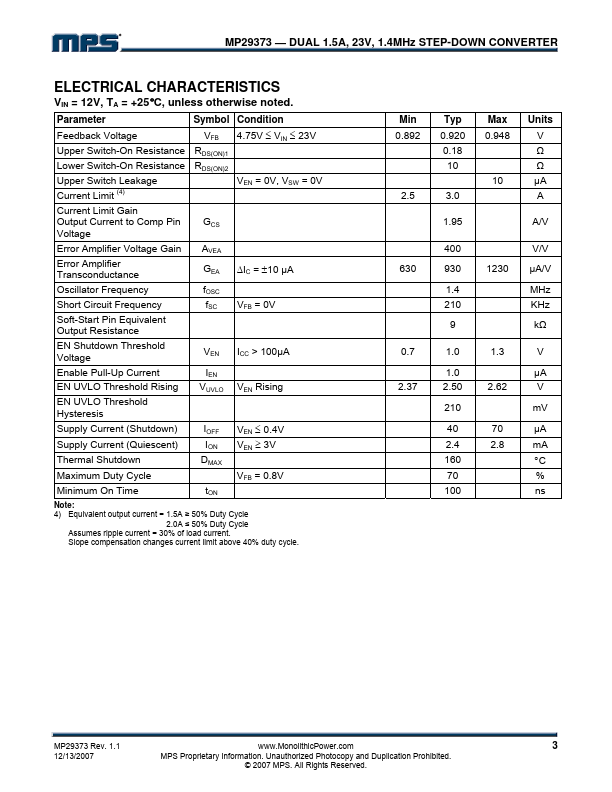

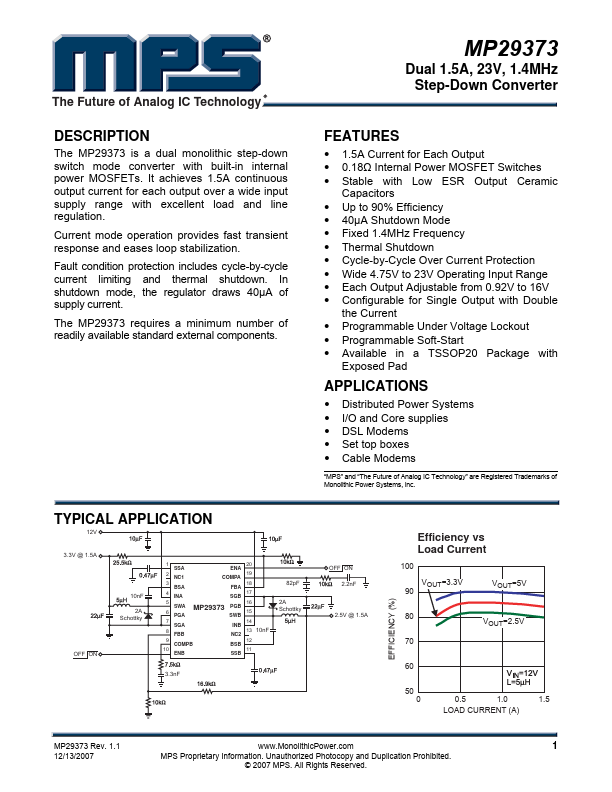

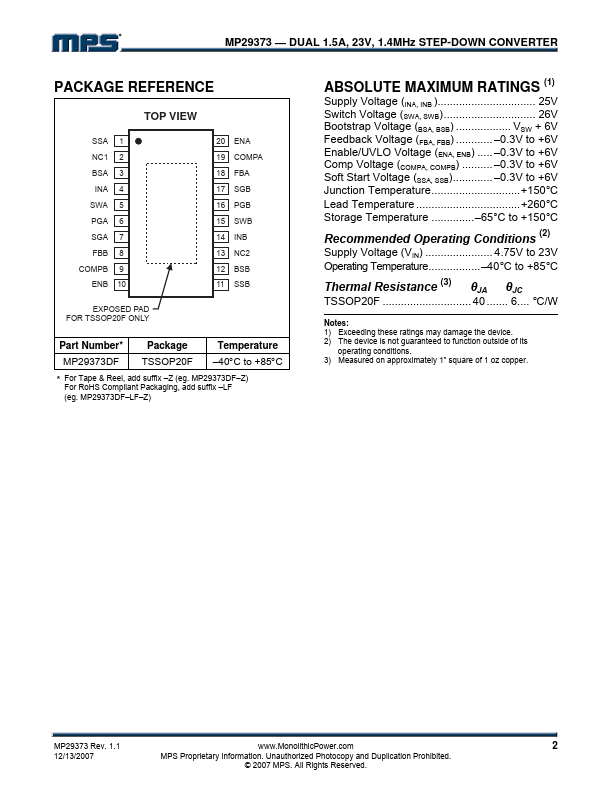

Additional preview pages of the MP29373 datasheet.

MP29373 Product details

Description

The MP29373 is a dual monolithic step-down switch mode converter with built-in internal power MOSFETs.

Features

1.5A Current for Each Output.
0.18Ω Internal Power MOSFET Switches.
Stable with Low ESR Output Ceramic Capacitors.
Up to 90% Efficiency.
40μA Shutdown Mode.
Fixed 1.4MHz Frequency.
Thermal Shutdown.
Cycle-by-Cycle Over Current Protection.
Wide 4.75V to 23V Operating Input Range.
Each Output Adjustable from 0.92V to 16V.
Configurable for Single Output with Double the Current.
Programmable.
