MP2905 - Synchronous Step-Down Controller

MPS

The MP2905 by MPS is a Synchronous Step-Down Controller. Below is the official datasheet preview.

📥 Download Datasheet

MP2905 Synchronous Step-Down Controller by MPS - Datasheet Preview — Official preview page of the MP2905 Synchronous Step-Down Controller datasheet (MPS).

Datasheet Details

Part number	MP2905
Manufacturer	MPS
File Size	453.77 KB
Description	Synchronous Step-Down Controller
Datasheet	MP2905-MPS.pdf

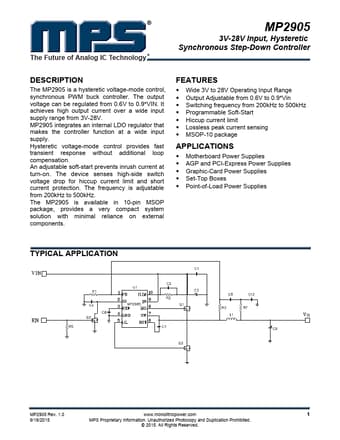

Additional preview pages of the MP2905 datasheet.

MP2905 Product details

Description

The MP2905 is a hysteretic voltage-mode control, synchronous PWM buck controller. VIN.

Features

Wide 3V to 28V Operating Input Range.
Output Adjustable from 0.6V to 0.9.
Vin.
Switching frequency from 200kHz to 500kHz.
Programmable Soft-Start.
Hiccup current limit.
Lossless peak current sensing.
MSOP-10 package.
